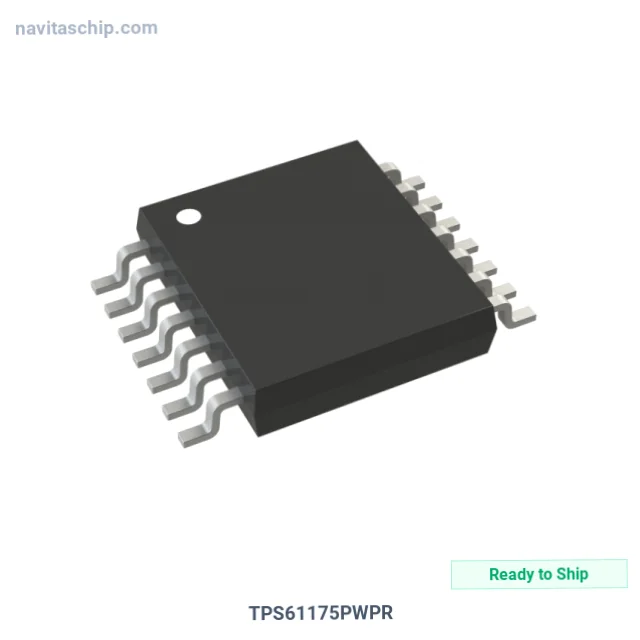

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TPS61175PWPR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-2714205 |
| Description | IC REG BST FLYBACK ADJ 14HTSSOP |
| Spec | 14-PowerTSSOP (0.173", 4.40mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 2.9V |
| Voltage - Output (Max) | 38V |
| Current - Output | 3A (Switch) |
| Frequency - Switching | 200kHz ~ 2.2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-HTSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TPS61175PWPR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TPS61175PWPR is a DC-DC Switching Voltage Regulator manufactured by Texas Instruments (TI). Integrated Circuit Regulator Bst Flyback Adjustable 14htssop, housed in a compact 14-HTSSOP package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 14-PowerTSSOP (0.173", 4.40mm Width)
- Device Package: 14-HTSSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
