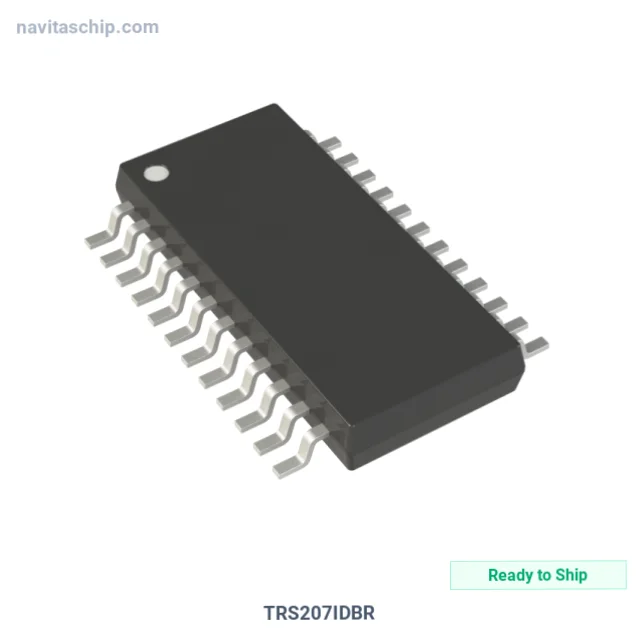

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TRS207IDBR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-11549956 |
| Description | IC TRANSCEIVER FULL 5/3 24SSOP |
| Spec | 24-SSOP (0.209", 5.30mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Obsolete |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 5/3 |
| Duplex | Full |
| Receiver Hysteresis | 500 mV |
| Data Rate | 120Kbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TRS207IDBR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TRS207IDBR is an Interface Driver Receiver Transceiver IC manufactured by Texas Instruments (TI). Integrated Circuit Transceiver Full 5/3 in 24-Pin SSOP Package, housed in a compact 24-SSOP package, with 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-SSOP (0.209", 5.30mm Width)
- Device Package: 24-SSOP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
