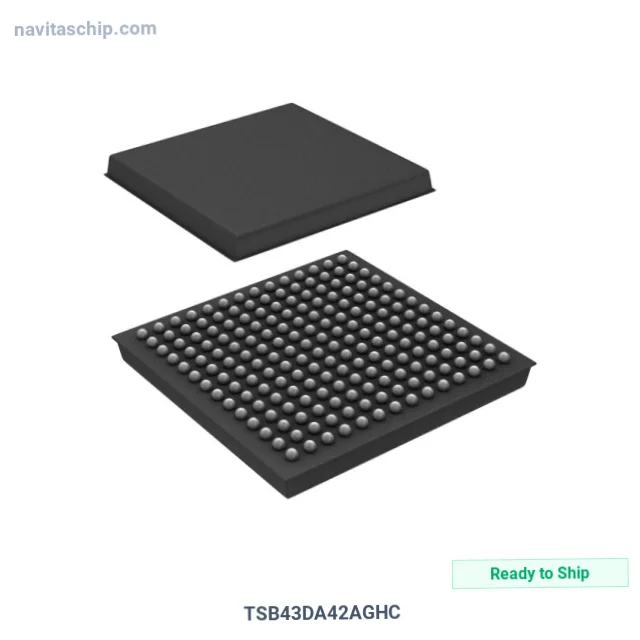

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TSB43DA42AGHC |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-11554975 |
| Description | IC PHY/LINK LAYER CTRLR 196-BGA |
| Spec | 196-LBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Obsolete |
| Protocol | IEEE 1394 |
| Function | Link Layer Controller |
| Interface | Parallel |
| Standards | IEEE 1394-1995, 1394a-2000 |
| Voltage - Supply | 1.5V, 3.3V |
| Operating Temperature | -20°C ~ 85°C |
| Supplier Device Package | 196-BGA MICROSTAR (15x15) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TSB43DA42AGHC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TSB43DA42AGHC is an Interface Controller IC manufactured by Texas Instruments (TI). Integrated Circuit Phy/link Layer Ctrlr in 196-Pin BGA Package, housed in a compact 196-BGA MICROSTAR (15x15) package, with 1.5V, 3.3V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.5V, 3.3V
- Interface: Parallel
- Operating Temperature: -20°C ~ 85°C
- Package: 196-LBGA
- Device Package: 196-BGA MICROSTAR (15x15)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
