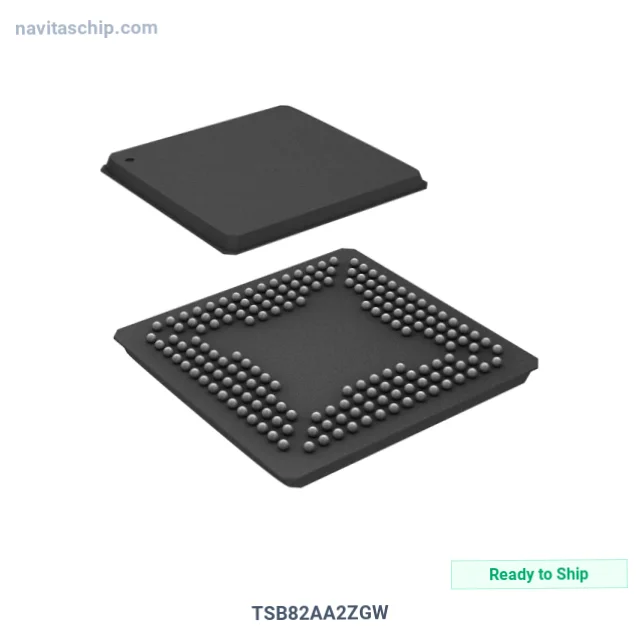

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TSB82AA2ZGW |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1909942 |
| Description | IC CONTROLLER OHCI-LYNX 176BGA |
| Spec | 176-LFBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Obsolete |
| Protocol | IEEE 1394 |
| Function | Link Layer Controller |
| Interface | PCI |
| Standards | IEEE 1394a-2000, OHCI-Lynx™ |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 176-BGA MICROSTAR (15x15) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TSB82AA2ZGW Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TSB82AA2ZGW is an Interface Controller IC manufactured by Texas Instruments (TI). Integrated Circuit Controller Ohci-Lynx in 176-Pin BGA Package, housed in a compact 176-BGA MICROSTAR (15x15) package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Interface: PCI
- Operating Temperature: 0°C ~ 70°C
- Package: 176-LFBGA
- Device Package: 176-BGA MICROSTAR (15x15)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
