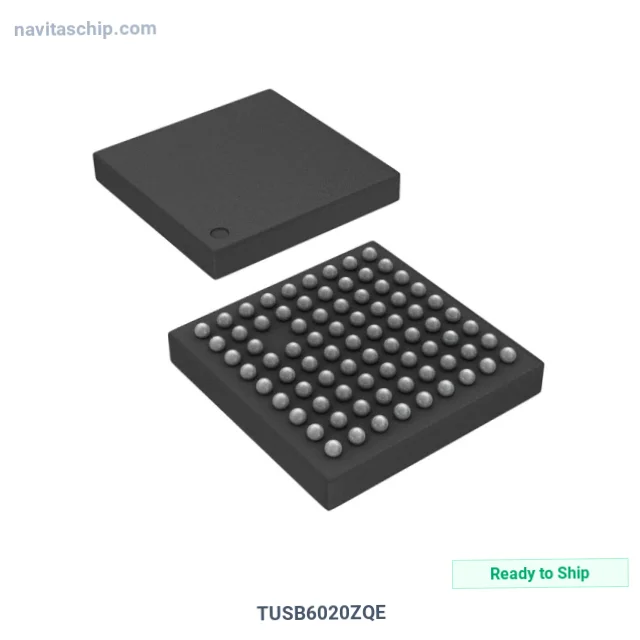

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TUSB6020ZQE |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1823796 |
| Description | IC USB 2.0 DUAL-ROLE CTRLR 80BGA |
| Spec | 80-VFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Obsolete |
| Protocol | USB |
| Function | Controller |
| Interface | Parallel |
| Standards | USB 2.0, OTG |
| Voltage - Supply | 1.5V, 1.8V, 3.3V |
| Current - Supply | 78.1mA |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 80-BGA MICROSTAR JUNIOR (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TUSB6020ZQE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TUSB6020ZQE is an Interface Controller IC manufactured by Texas Instruments (TI). Integrated Circuit USB 2.0 Dual-Role Ctrlr in 80-Pin BGA Package, housed in a compact 80-BGA MICROSTAR JUNIOR (5x5) package, with 1.5V, 1.8V, 3.3V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.5V, 1.8V, 3.3V
- Interface: Parallel
- Operating Temperature: 0°C ~ 70°C
- Package: 80-VFBGA
- Device Package: 80-BGA MICROSTAR JUNIOR (5x5)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
