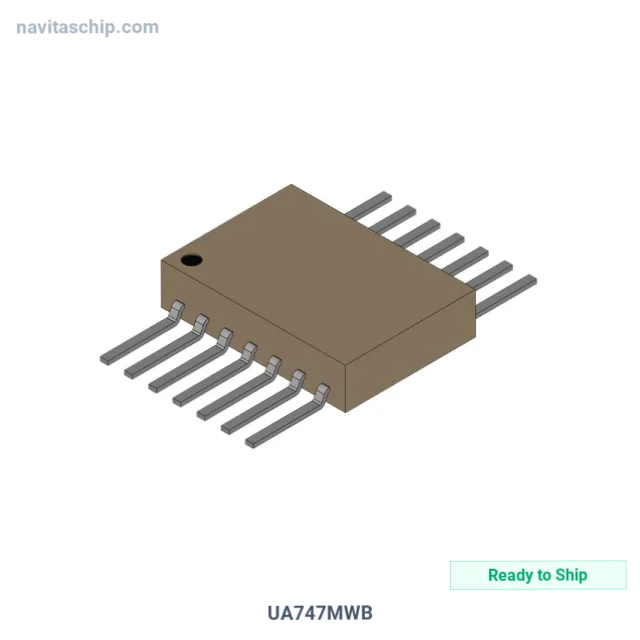

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | UA747MWB |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-12126737 |
| Description | IC OPAMP GP 2 CIRCUIT 14CFP |
| Spec | 14-CFlatPack |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Slew Rate | 0.5V/µs |
| Current - Input Bias | 80 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 1.7mA (x2 Channels) |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 7 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-CFP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments UA747MWB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The UA747MWB is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Operational Amplifier General Purpose 2 Circuit 14cfp, housed in a compact 14-CFP package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 125°C
- Mounting: Surface Mount
- Package: 14-CFlatPack
- Device Package: 14-CFP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
