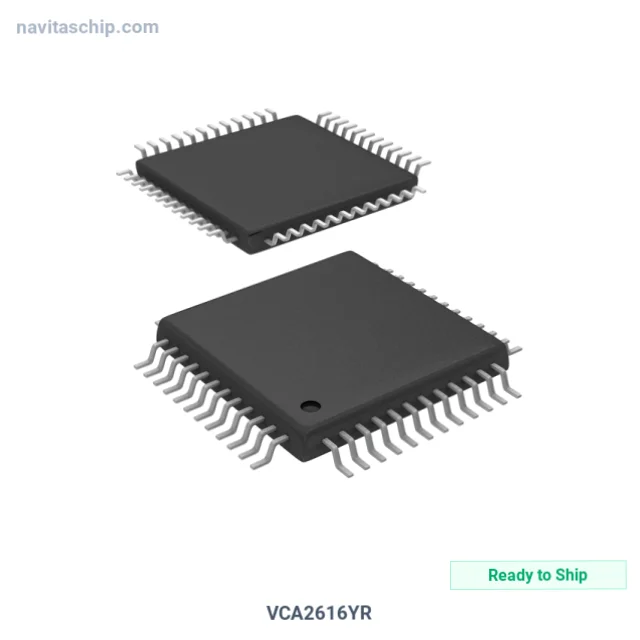

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | VCA2616YR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1912682 |
| Description | IC VARIABLE GAIN 2 CIRC 48TQFP |
| Spec | 48-TQFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Amplifier Type | Variable Gain |
| Number of Circuits | 2 |
| Output Type | Differential |
| Slew Rate | 300V/µs |
| Gain Bandwidth Product | 80 MHz |
| -3db Bandwidth | 40 MHz |
| Current - Input Bias | 1 nA |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 4.75 V |
| Voltage - Supply Span (Max) | 5.25 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-TQFP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments VCA2616YR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The VCA2616YR is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Variable Gain 2 Circ in 48-Pin TQFP Package, housed in a compact 48-TQFP (7x7) package.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 48-TQFP
- Device Package: 48-TQFP (7x7)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
