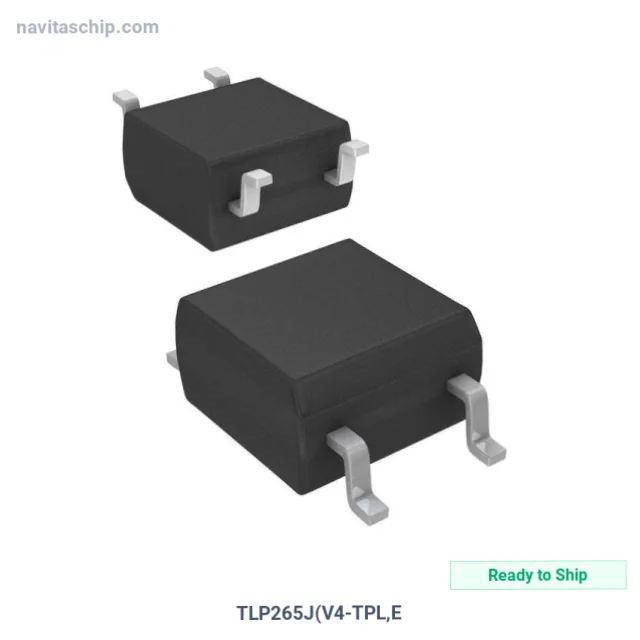

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TLP265J(V4-TPL,E |
| Manufacturer | Toshiba Semiconductor and Storage |
| NavitasChip Part Number | NAVI-7809686 |
| Description | OPTOISOLTR 3.75KV TRIAC 1CH 6SOP |
| Spec | 6-SOIC (0.173", 4.40mm Width), 4 Leads |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 500V/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 70 mA |
| Current - Hold (Ih) | 1mA (Typ) |
| Turn On Time | 20µs |
| Voltage - Forward (Vf) (Typ) | 1.27V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-SOP |
| Approval Agency | CQC, cUR, UR, VDE |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Toshiba Semiconductor and Storage TLP265J(V4-TPL,E Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TLP265J(V4-TPL,E is an Optocoupler manufactured by Toshiba Semiconductor and Storage (Toshiba). Optocoupler Isolator 3.75kV Triac 1-Channel 6-SOP.
Key Technical Specifications
- Output Type: Triac
- Channels: 1
- Operating Temperature: -40°C ~ 100°C
- Mounting: Surface Mount
- Package: 6-SOIC (0.173", 4.40mm Width), 4 Leads
- Device Package: 6-SOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
