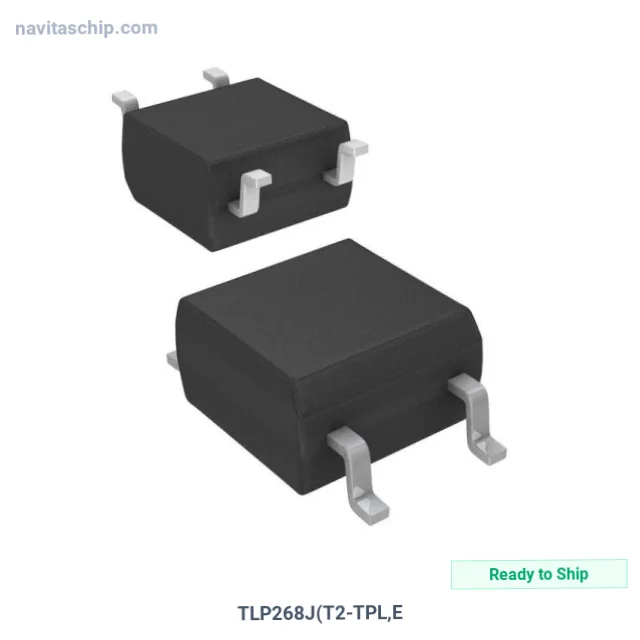

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TLP268J(T2-TPL,E |
| Manufacturer | Toshiba Semiconductor and Storage |
| NavitasChip Part Number | NAVI-7809703 |
| Description | OPTOISOLTR 3.75KV TRIAC 1CH 6SOP |
| Spec | 6-SOIC (0.173", 4.40mm Width), 4 Leads |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 500V/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 3mA |
| Current - On State (It (RMS)) (Max) | 70 mA |
| Current - Hold (Ih) | 200µA (Typ) |
| Turn On Time | 100µs |
| Voltage - Forward (Vf) (Typ) | 1.27V |
| Current - DC Forward (If) (Max) | 30 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-SOP |
| Approval Agency | CQC, cUR, UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Toshiba Semiconductor and Storage TLP268J(T2-TPL,E Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TLP268J(T2-TPL,E is an Optocoupler manufactured by Toshiba Semiconductor and Storage (Toshiba). Optocoupler Isolator 3.75kV Triac 1ch 6-SOP, housed in a compact 6-SOP package. Extended temperature range version (-40°C to +85°C).
Don't let optocoupler lead times slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Output Type: Triac
- Channels: 1
- Operating Temperature: -40°C ~ 100°C
- Mounting: Surface Mount
- Package: 6-SOIC (0.173", 4.40mm Width), 4 Leads
- Device Package: 6-SOP
- RoHS Compliant
Applications
Widely adopted for:
- industrial fieldbus
- motor drives
- industrial control
Why Choose NavitasChip for TLP268J(T2-TPL,E?
NavitasChip offers global surplus sourcing network for the TLP268J(T2-TPL,E and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
TLP268J(T2-TPL,E sourced and shipped via our Asia-Pacific distribution network.
TLP268J(T2-TPL,E - Get instant quote online.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
