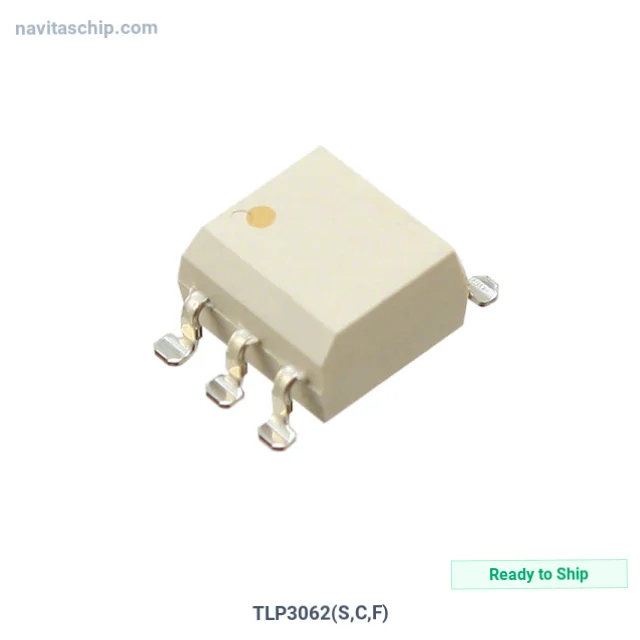

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TLP3062(S,C,F) |
| Manufacturer | Toshiba Semiconductor and Storage |
| NavitasChip Part Number | NAVI-1118803 |
| Description | OPTOISOLATOR 5KV TRIAC 1CH 6DIP |
| Spec | 6-DIP (0.300", 7.62mm), 5 Leads |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Package | Tube |
| Product Status | Obsolete |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 200V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Current - Hold (Ih) | 600µA (Typ) |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 6-DIP (Cut), 5 Lead |
| Approval Agency | BSI, SEMKO, UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Toshiba Semiconductor and Storage TLP3062(S,C,F) Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TLP3062(S,C,F) is an Optocoupler manufactured by Toshiba Semiconductor and Storage (Toshiba). Optocoupler Isolator 5kV Triac 1ch in 6-Pin DIP Package, housed in a compact 6-DIP (Cut), 5 Lead package.
Don't let quarterly cost-down targets slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Output Type: Triac
- Channels: 1
- Operating Temperature: -40°C ~ 100°C
- Mounting: Through Hole
- Package: 6-DIP (0.300", 7.62mm), 5 Leads
- Device Package: 6-DIP (Cut), 5 Lead
- RoHS Compliant
Applications
Critical part of:
- solar inverters
- power supplies
- industrial control
- signal isolation
Why Choose NavitasChip for TLP3062(S,C,F)?
NavitasChip offers cost-effective alternative to authorized distributors for the TLP3062(S,C,F) and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Global supply network for TLP3062(S,C,F) with distribution hubs in Hong Kong, Singapore, and Shenzhen.
TLP3062(S,C,F) - Contact our sales team.
