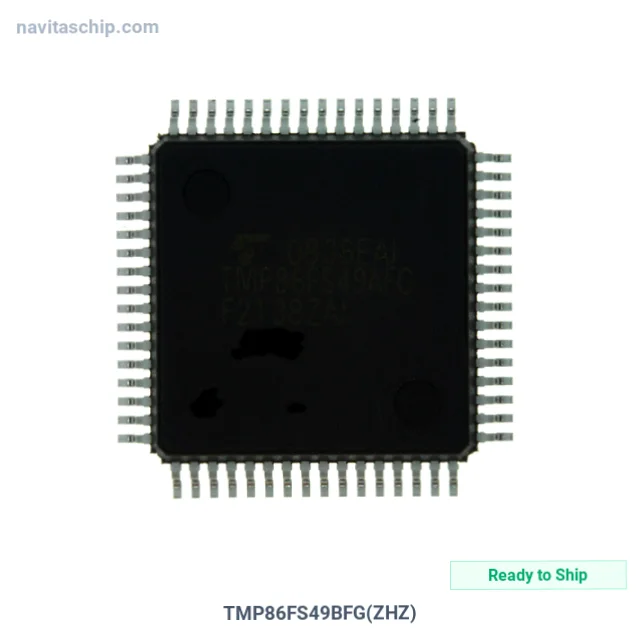

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMP86FS49BFG(ZHZ) |
| Manufacturer | Toshiba Semiconductor and Storage |
| NavitasChip Part Number | NAVI-1994599 |
| Description | IC MCU 8BIT 60KB FLASH 64QFP |
| Spec | 64-BQFP |
| Package | Tray |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Toshiba Semiconductor and Storage |
| Package | Tray |
| Product Status | Active |
| Core Processor | 870/C |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SIO, UART/USART |
| Peripherals | LED, PWM, WDT |
| Number of I/O | 56 |
| Program Memory Size | 60KB (60K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-QFP (14x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMP86FS49BFG(ZHZ) is a Microcontroller (MCU) manufactured by Toshiba Semiconductor and Storage (Toshiba). Integrated Circuit Microcontroller 8bit 60kb Flash Memory in 64-Pin QFP Package, housed in a compact 64-QFP (14x14) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 64-BQFP
- Device Package: 64-QFP (14x14)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
