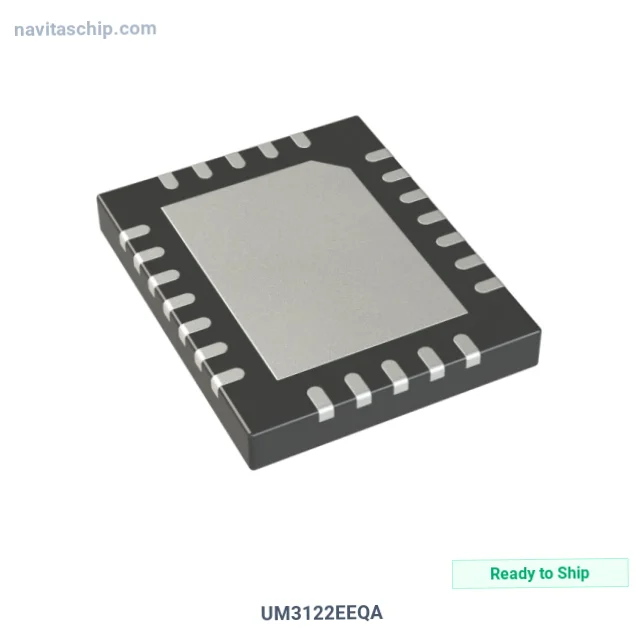

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | UM3122EEQA |
| Manufacturer | Union Semiconductor International Limited |
| NavitasChip Part Number | NAVI-21273343 |
| Description | IC TRANSCEIVER FULL 2/2 24QFN |
| Spec | 24-WFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Union Semiconductor International Limited |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Receiver Hysteresis | 450 mV |
| Data Rate | 1Mbps |
| Voltage - Supply | 1.65V ~ 2V, 3V ~ 3.6V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-QFN (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Union Semiconductor International Limited UM3122EEQA Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The UM3122EEQA is an Interface Driver Receiver Transceiver IC manufactured by Union Semiconductor International Limited. Integrated Circuit Transceiver Full 2/2 in 24-Pin QFN Package, housed in a compact 24-QFN (4x4) package, with 1.65V ~ 2V, 3V ~ 3.6V, 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.65V ~ 2V, 3V ~ 3.6V, 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 24-WFQFN Exposed Pad
- Device Package: 24-QFN (4x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
