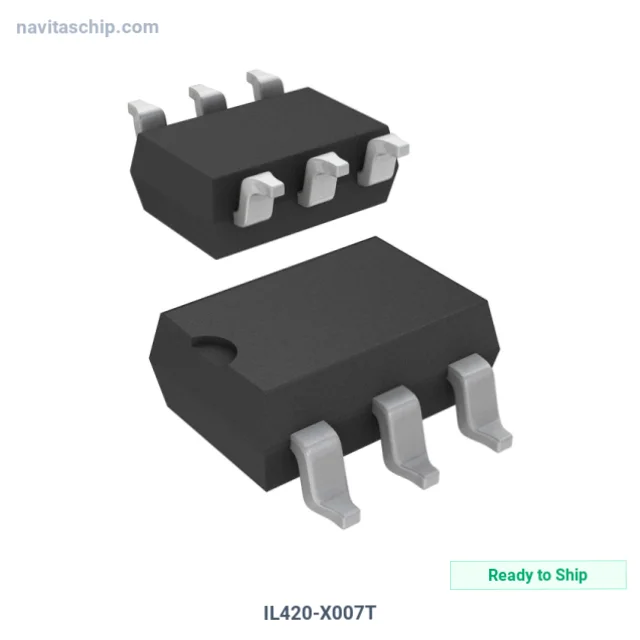

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | IL420-X007T |
| Manufacturer | Vishay Semiconductor Opto Division |
| NavitasChip Part Number | NAVI-4070479 |
| Description | OPTOISOLTR 5.3KV TRIAC 1CH 6-SMD |
| Spec | 6-SMD, Gull Wing |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 10kV/µs |
| Current - LED Trigger (Ift) (Max) | 2mA |
| Current - On State (It (RMS)) (Max) | 300 mA |
| Current - Hold (Ih) | 500µA |
| Turn On Time | 35µs |
| Voltage - Forward (Vf) (Typ) | 1.16V |
| Current - DC Forward (If) (Max) | 60 mA |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-SMD |
| Approval Agency | CQC, CSA, cUR, UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Vishay Semiconductor Opto Division IL420-X007T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The IL420-X007T is an Optocoupler manufactured by Vishay Semiconductor Opto Division (Vishay-Opto). Optocoupler Isolator 5.3kV Triac 1-Channel 6-Surface Mount, housed in a compact 6-SMD package.
Key Technical Specifications
- Output Type: Triac
- Channels: 1
- Operating Temperature: -55°C ~ 100°C
- Mounting: Surface Mount
- Package: 6-SMD, Gull Wing
- Device Package: 6-SMD
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
