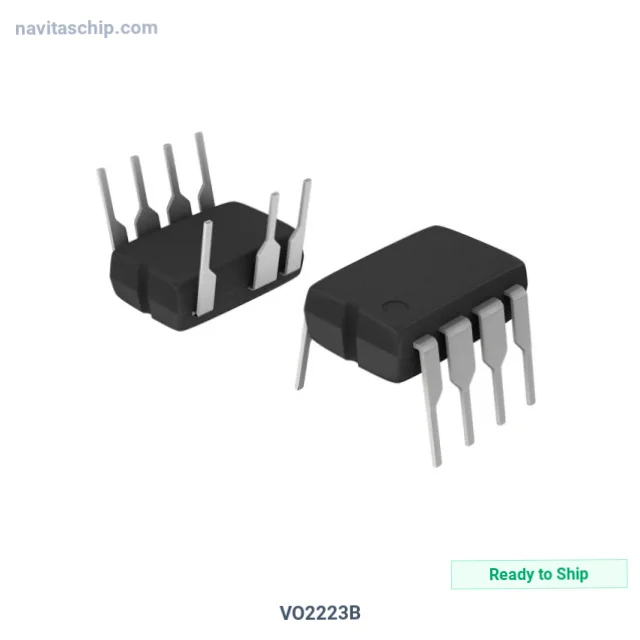

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | VO2223B |
| Manufacturer | Vishay Semiconductor Opto Division |
| NavitasChip Part Number | NAVI-8347186 |
| Description | OPTOIS 4.47KV PWR TRIAC 1CH 8DIP |
| Spec | 8-DIP (0.300", 7.62mm), 7 Leads |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Package | Tube |
| Product Status | Active |
| Output Type | Triac, Power |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 4470Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 600V/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 1 A |
| Current - Hold (Ih) | 25mA |
| Voltage - Forward (Vf) (Typ) | 1.4V (Max) |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-DIP |
| Approval Agency | cUR, UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Vishay Semiconductor Opto Division VO2223B Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The VO2223B is an Optocoupler manufactured by Vishay Semiconductor Opto Division (Vishay-Opto). Optois 4.47kV Power Triac 1-Channel in 8-Pin DIP Package, housed in a compact 8-DIP package.
Key Technical Specifications
- Output Type: Triac, Power
- Channels: 1
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: 8-DIP (0.300", 7.62mm), 7 Leads
- Device Package: 8-DIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
