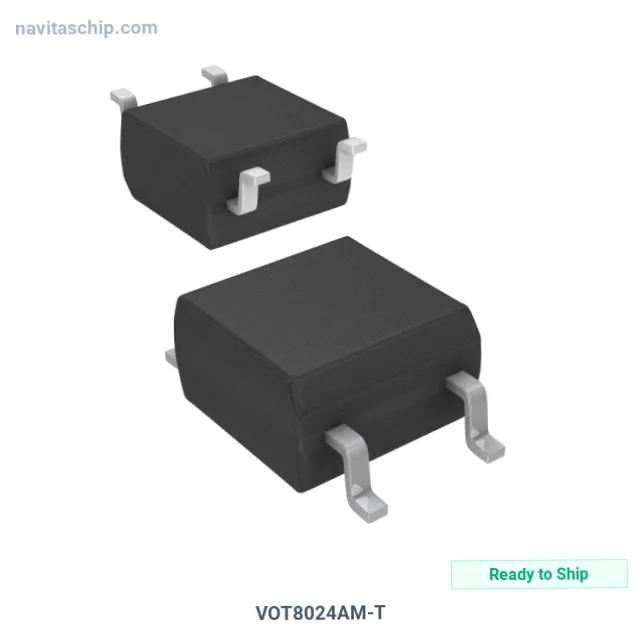

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | VOT8024AM-T |
| Manufacturer | Vishay Semiconductor Opto Division |
| NavitasChip Part Number | NAVI-9740015 |
| Description | OPTOISOLTR 3.75KV TRIAC 1CH 4SOP |
| Spec | 4-SMD, Gull Wing |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 800 V |
| Static dV/dt (Min) | 1kV/µs |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Current - Hold (Ih) | 400µA (Typ) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-SOP |
| Approval Agency | cUL, UL |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Vishay Semiconductor Opto Division VOT8024AM-T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The VOT8024AM-T is an Optocoupler manufactured by Vishay Semiconductor Opto Division (Vishay-Opto). Optocoupler Isolator 3.75kV Triac 1ch 4-SOP, housed in a compact 4-SOP package.
Facing EOL (End of Life) notices? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Triac
- Channels: 1
- Operating Temperature: -55°C ~ 110°C
- Mounting: Surface Mount
- Package: 4-SMD, Gull Wing
- Device Package: 4-SOP
- RoHS Compliant
Applications
Designed for:
- industrial fieldbus
- motor drives
- industrial control
- isolation feedback
- signal isolation
