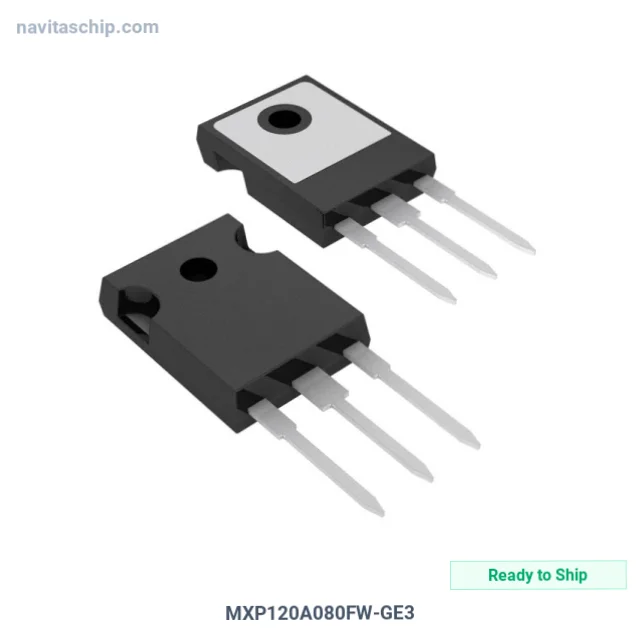

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MXP120A080FW-GE3 |
| Manufacturer | Vishay Siliconix |
| NavitasChip Part Number | NAVI-24710741 |
| Description | SILICON CARBIDE MOSFET |
| Spec | TO-247-3 |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Vishay Siliconix |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tube |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 29A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 18V, 20V |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 20A, 20V |
| Vgs(th) (Max) @ Id | 2.69V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 47.3 nC @ 18 V |
| Vgs (Max) | +22V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1156 pF @ 800 V |
| Power Dissipation (Max) | 139W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3L |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Vishay Siliconix MXP120A080FW-GE3 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MXP120A080FW-GE3 is a Transistor manufactured by Vishay Siliconix (Vishay-Siliconix). Silicon Carbide MOSFET, housed in a compact TO-247-3L package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting: Through Hole
- Package: TO-247-3
- Device Package: TO-247-3L
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
