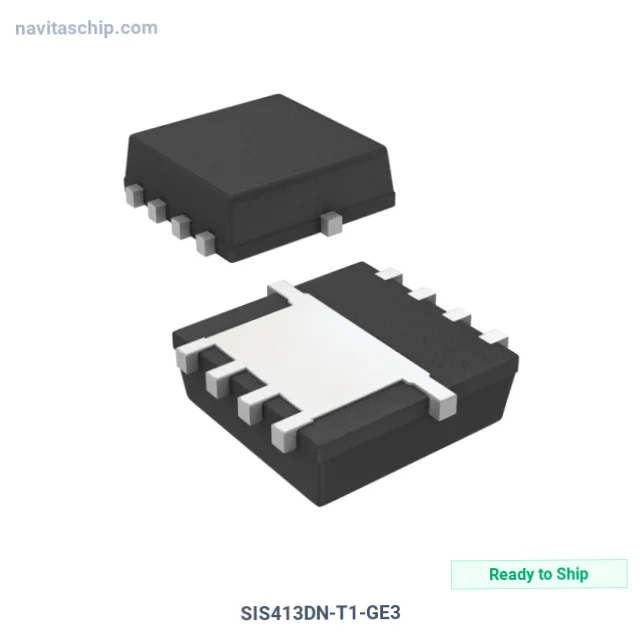

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SIS413DN-T1-GE3 |
| Manufacturer | Vishay Siliconix |
| NavitasChip Part Number | NAVI-4142142 |
| Description | MOSFET P-CH 30V 18A PPAK 1212-8 |
| Spec | PowerPAK® 1212-8 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Vishay Siliconix |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9.4mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 110 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4280 pF @ 15 V |
| Power Dissipation (Max) | 3.7W (Ta), 52W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® 1212-8 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Vishay Siliconix SIS413DN-T1-GE3 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SIS413DN-T1-GE3 is a Transistor manufactured by Vishay Siliconix (Vishay-Siliconix). MOSFET P-Channel 30V Breakdown 18a Current Ppak 1212-8, housed in a compact PowerPAK® 1212-8 package.
Don't let long factory lead times slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting: Surface Mount
- Package: PowerPAK® 1212-8
- RoHS Compliant
Applications
Critical part of:
- power conversion
- battery management
- industrial equipment
- signal amplification
Why Choose NavitasChip for SIS413DN-T1-GE3?
NavitasChip offers cost-effective alternative to authorized distributors for the SIS413DN-T1-GE3 and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
As an independent distributor, we offer SIS413DN-T1-GE3 with flexible routing options.
SIS413DN-T1-GE3 - Check our competitive price now.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
