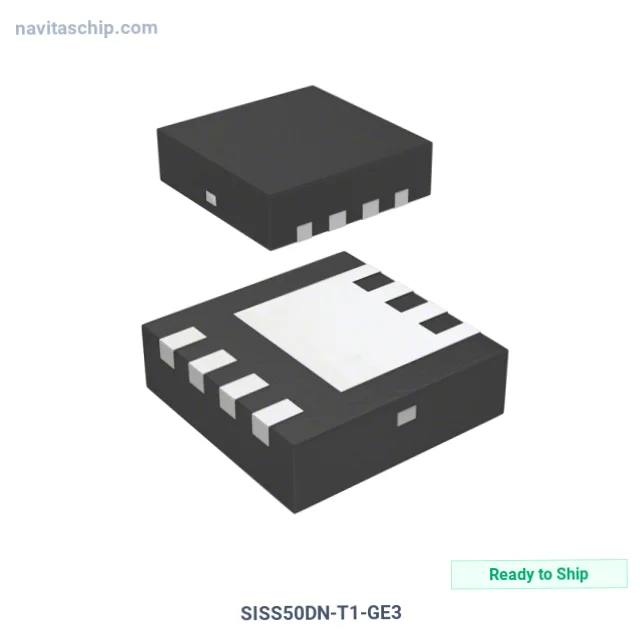

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SISS50DN-T1-GE3 |
| Manufacturer | Vishay Siliconix |
| NavitasChip Part Number | NAVI-10484583 |
| Description | MOSFET N-CH 45V 29.7A/108A PPAK |
| Spec | PowerPAK® 1212-8S |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Vishay Siliconix |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 45 V |
| Current - Continuous Drain (Id) @ 25°C | 29.7A (Ta), 108A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.83mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 10 V |
| Vgs (Max) | +20V, -16V |
| Input Capacitance (Ciss) (Max) @ Vds | 4000 pF @ 20 V |
| Power Dissipation (Max) | 5W (Ta), 65.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® 1212-8S |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Vishay Siliconix SISS50DN-T1-GE3 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SISS50DN-T1-GE3 is a Transistor manufactured by Vishay Siliconix (Vishay-Siliconix). MOSFET N-Channel 45V Breakdown 29.7a Current/108a Current Ppak, housed in a compact PowerPAK® 1212-8S package.
Struggling with allocation constraints? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting: Surface Mount
- Package: PowerPAK® 1212-8S
- RoHS Compliant
Applications
Ideal solution for:
- LED drivers
- switching power supplies
- signal amplification
- power control
- signal processing
Why Choose NavitasChip for SISS50DN-T1-GE3?
NavitasChip offers cost-effective alternative to authorized distributors for the SISS50DN-T1-GE3 and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Global supply network for SISS50DN-T1-GE3 with distribution hubs in Hong Kong, Singapore, and Shenzhen.
SISS50DN-T1-GE3 - Upload your BOM for fast pricing.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
