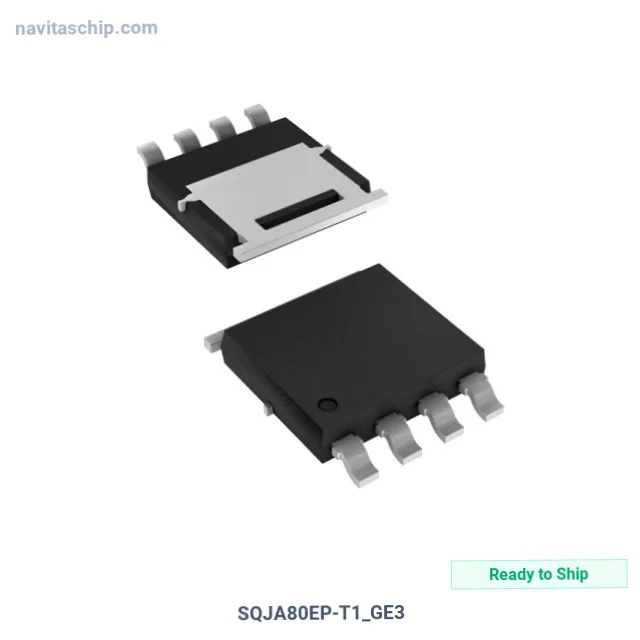

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SQJA80EP-T1_GE3 |
| Manufacturer | Vishay Siliconix |
| NavitasChip Part Number | NAVI-6708932 |
| Description | MOSFET N-CH 80V 60A PPAK SO-8 |
| Spec | PowerPAK® SO-8 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Vishay Siliconix |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 75 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3800 pF @ 25 V |
| Power Dissipation (Max) | 68W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Vishay Siliconix SQJA80EP-T1_GE3 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SQJA80EP-T1_GE3 is a Transistor manufactured by Vishay Siliconix (Vishay-Siliconix). MOSFET N-Channel 80V Breakdown 60a Current Ppak So-8, housed in a compact PowerPAK® SO-8 package.
In today's market, challenging Target Price (TP) requirements can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Surface Mount
- Package: PowerPAK® SO-8
- RoHS Compliant
Applications
Widely adopted for:
- motor control
- LED drivers
- industrial equipment
- signal amplification
- switching
Why Choose NavitasChip for SQJA80EP-T1_GE3?
NavitasChip offers Allocated parts in stock when authorized channels face shortage for the SQJA80EP-T1_GE3 and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Ships from Hong Kong, Singapore, or Shenzhen based on destination requirements.
SQJA80EP-T1_GE3 - Inquire for bulk discount.
