W25Q16FWZPIQ Winbond Electronics

IC FLASH 16MBIT SPI/QUAD 8WSON

In stock: 2,842 pcs · Price on request (RFQ)

In Stock RoHS

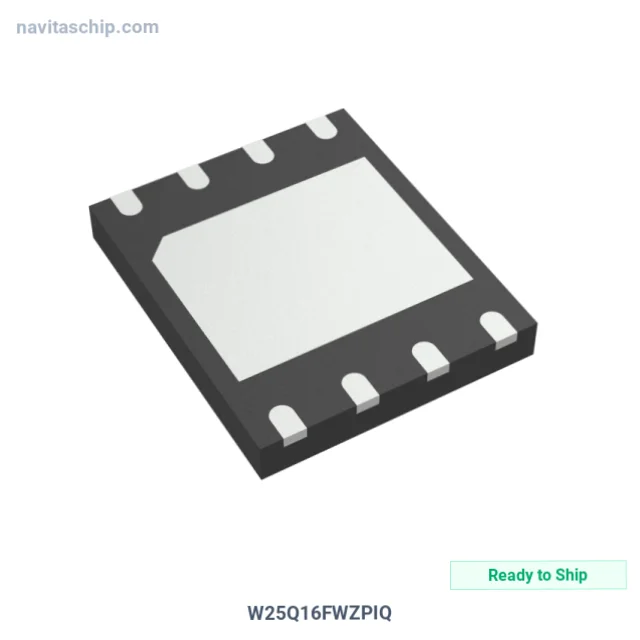

W25Q16FWZPIQ

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

Manufacturer Product Number W25Q16FWZPIQ
Manufacturer Winbond Electronics
NavitasChip Part Number N96057414
Description IC FLASH 16MBIT SPI/QUAD 8WSON
Spec 8-WDFN Exposed Pad
Package Tube
Datasheet Datasheet

Product Attributes

Type Description
Category Memory ICs
Manufacturer Winbond Electronics
Package Tube
Product Status Obsolete
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mbit
Memory Organization 2M x 8
Memory Interface SPI - Quad I/O, QPI
Clock Frequency 104 MHz
Write Cycle Time - Word, Page 60µs, 3ms
Voltage - Supply 1.65V ~ 1.95V
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 8-WSON (6x5)

Documents & Media

Resource Type Link
Datasheet Winbond Electronics W25Q16FWZPIQ Datasheet
Product Image View Large Image

Environmental Compliance

Attribute Description
RoHS Status RoHS Compliant
REACH Status REACH Unaffected

Product Description

The W25Q16FWZPIQ is a Memory IC manufactured by Winbond Electronics (Winbond). Integrated Circuit Flash Memory 16mbit SPI/quad in 8-Pin WSON Package, housed in a compact 8-WSON (6x5) package, with 1.65V ~ 1.95V supply voltage.

Key Technical Specifications

  • Supply Voltage: 1.65V ~ 1.95V
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting: Surface Mount
  • Package: 8-WDFN Exposed Pad
  • Device Package: 8-WSON (6x5)
  • RoHS Compliant

Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.

Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.

Spot Buy Note

Stock quantities change frequently. For large orders (1,000+ units), please contact us to verify stock and get custom pricing.
