W631GG8NB09J Winbond Electronics

IC DRAM 1GBIT SSTL 15 78VFBGA

In stock: 2,361 pcs · Price on request (RFQ)

In Stock RoHS

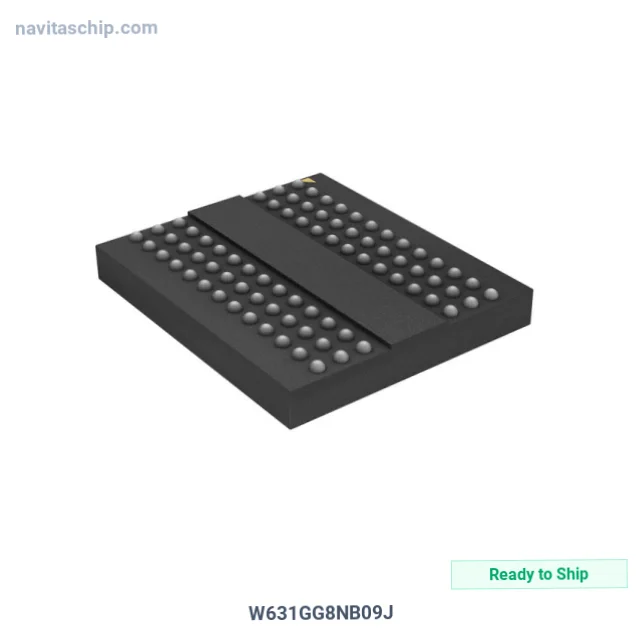

W631GG8NB09J

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

Manufacturer Product Number W631GG8NB09J
Manufacturer Winbond Electronics
NavitasChip Part Number N96061804
Description IC DRAM 1GBIT SSTL 15 78VFBGA
Spec 78-VFBGA
Package Tray
Datasheet Datasheet

Product Attributes

Type Description
Category Memory ICs
Manufacturer Winbond Electronics
Package Tray
Product Status Obsolete
Memory Type Volatile
Memory Format DRAM
Technology SDRAM - DDR3
Memory Size 1Gbit
Memory Organization 128M x 8
Memory Interface SSTL_15
Clock Frequency 1.066 GHz
Write Cycle Time - Word, Page 15ns
Access Time 20 ns
Voltage - Supply 1.425V ~ 1.575V
Operating Temperature -40°C ~ 105°C (TC)
Mounting Type Surface Mount
Supplier Device Package 78-VFBGA (8x10.5)

Documents & Media

Resource Type Link
Datasheet Winbond Electronics W631GG8NB09J Datasheet
Product Image View Large Image

Environmental Compliance

Attribute Description
RoHS Status RoHS Compliant
REACH Status REACH Unaffected

Product Description

The W631GG8NB09J is a Memory IC manufactured by Winbond Electronics (Winbond). Integrated Circuit DRAM 1gbit Sstl 15 in 78-Pin BGA Package, housed in a compact 78-VFBGA (8x10.5) package, with 1.425V ~ 1.575V supply voltage.

Key Technical Specifications

  • Supply Voltage: 1.425V ~ 1.575V
  • Operating Temperature: -40°C ~ 105°C (TC)
  • Mounting: Surface Mount
  • Package: 78-VFBGA
  • Device Package: 78-VFBGA (8x10.5)
  • RoHS Compliant

Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.

Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.

Spot Buy Note

Stock quantities change frequently. For large orders (1,000+ units), please contact us to verify stock and get custom pricing.
