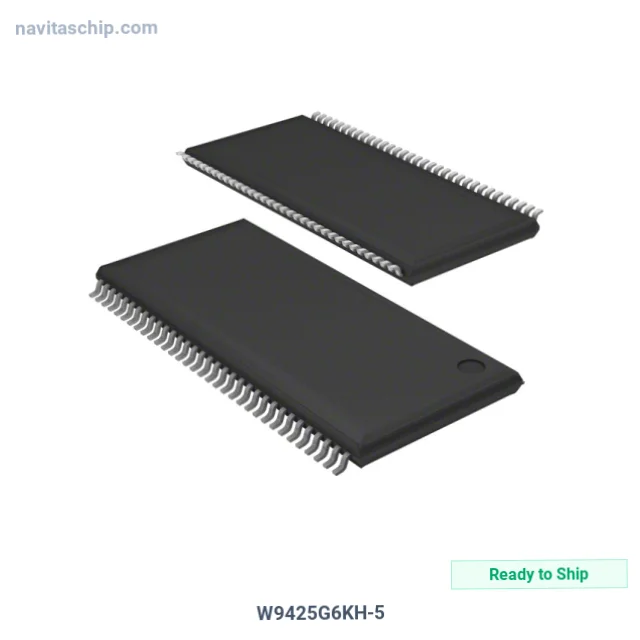

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | W9425G6KH-5 |
| Manufacturer | Winbond Electronics |
| NavitasChip Part Number | NAVI-5001914 |
| Description | IC DRAM 256MBIT PAR 66TSOP II |
| Spec | 66-TSSOP (0.400", 10.16mm Width) |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Winbond Electronics |
| Package | Tray |
| Product Status | Active |
| Memory Type | Volatile |
| Memory Format | DRAM |
| Technology | SDRAM - DDR |
| Memory Size | 256Mbit |
| Memory Organization | 16M x 16 |
| Memory Interface | Parallel |
| Clock Frequency | 200 MHz |
| Write Cycle Time - Word, Page | 15ns |
| Access Time | 55 ns |
| Voltage - Supply | 2.3V ~ 2.7V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 66-TSOP II |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Winbond Electronics W9425G6KH-5 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The W9425G6KH-5 is a Memory IC manufactured by Winbond Electronics (Winbond). Integrated Circuit DRAM 256mbit Parallel in 66-Pin TSOP Package II, housed in a compact 66-TSOP II package, with 2.3V ~ 2.7V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.3V ~ 2.7V
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 66-TSSOP (0.400", 10.16mm Width)
- Device Package: 66-TSOP II
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
