W947D2HBJX6E TR Winbond Electronics

IC DRAM 128MBIT LVCMOS 90VFBGA

In stock: 2,719 pcs · Price on request (RFQ)

In Stock RoHS

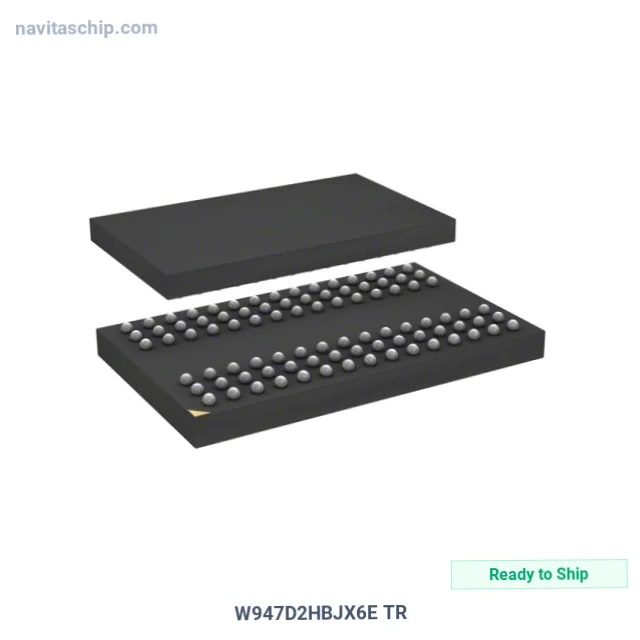

W947D2HBJX6E TR

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

Manufacturer Product Number W947D2HBJX6E TR
Manufacturer Winbond Electronics
NavitasChip Part Number N96055889
Description IC DRAM 128MBIT LVCMOS 90VFBGA
Spec 90-TFBGA
Package Tape & Reel (TR)
Datasheet Datasheet

Product Attributes

Type Description
Category Memory ICs
Manufacturer Winbond Electronics
Package Tape & Reel (TR)
Product Status Obsolete
Memory Type Volatile
Memory Format DRAM
Technology SDRAM - Mobile LPDDR
Memory Size 128Mbit
Memory Organization 4M x 32
Memory Interface LVCMOS
Clock Frequency 166 MHz
Write Cycle Time - Word, Page 15ns
Access Time 5 ns
Voltage - Supply 1.7V ~ 1.95V
Operating Temperature -25°C ~ 85°C (TC)
Mounting Type Surface Mount
Supplier Device Package 90-VFBGA (8x13)
Part Status Active

Documents & Media

Environmental Compliance

Attribute Description
RoHS Status RoHS Compliant
REACH Status REACH Unaffected

Product Description

The W947D2HBJX6E TR is a Memory IC manufactured by Winbond Electronics (Winbond). Integrated Circuit DRAM 128mbit Lvcmos in 90-Pin BGA Package, housed in a compact 90-VFBGA (8x13) package, with 1.7V ~ 1.95V supply voltage.

Key Technical Specifications

  • Supply Voltage: 1.7V ~ 1.95V
  • Operating Temperature: -25°C ~ 85°C (TC)
  • Mounting: Surface Mount
  • Package: 90-TFBGA
  • Device Package: 90-VFBGA (8x13)
  • RoHS Compliant

Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.

Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.

Spot Buy Note

Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.

Ordering variants of W947D2HBJX6E TR

Same device in different packaging or grades (temperature, speed, accuracy).
