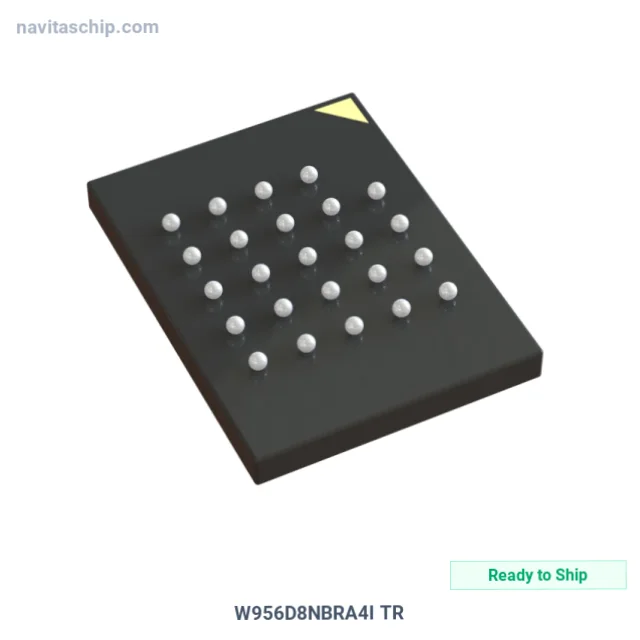

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | W956D8NBRA4I TR |
| Manufacturer | Winbond Electronics |
| NavitasChip Part Number | NAVI-27513161 |
| Description | 64MB HYPERRAM X8, 250MHZ |
| Spec | 24-TBGA |
| Package | Tape & Reel (TR) |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Winbond Electronics |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Memory Type | Volatile |
| Memory Format | PSRAM |
| Technology | PSRAM (Pseudo SRAM) |
| Memory Size | 64Mbit |
| Memory Organization | 8M x 8 |
| Memory Interface | HyperBus |
| Clock Frequency | 250 MHz |
| Write Cycle Time - Word, Page | 35ns |
| Access Time | 40 ns |
| Voltage - Supply | 1.16V ~ 1.3V, 1.3V ~ 1.45V, 1.425V ~ 1.575V, 1.7V ~ 2V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-TFBGA (6x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The W956D8NBRA4I TR is a Memory IC manufactured by Winbond Electronics (Winbond). 64mb Hyperram X8, housed in a compact 24-TFBGA (6x8) package, with 1.16V ~ 1.3V, 1.3V ~ 1.45V, 1.425V ~ 1.575V, 1.7V ~ 2V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.16V ~ 1.3V, 1.3V ~ 1.45V, 1.425V ~ 1.575V, 1.7V ~ 2V
- Operating Temperature: -40°C ~ 85°C (TC)
- Mounting: Surface Mount
- Package: 24-TBGA
- Device Package: 24-TFBGA (6x8)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
