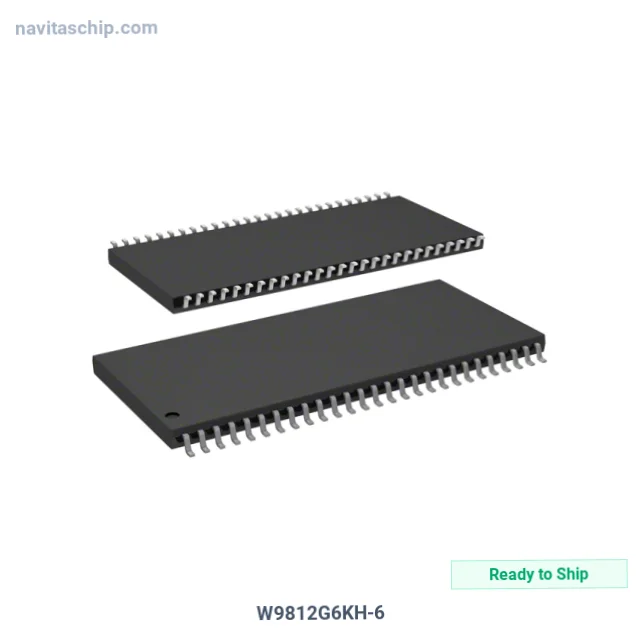

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | W9812G6KH-6 |
| Manufacturer | Winbond Electronics |
| NavitasChip Part Number | NAVI-4800163 |
| Description | IC DRAM 128MBIT LVTTL 54TSOP II |
| Spec | 54-TSOP (0.400", 10.16mm Width) |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Winbond Electronics |
| Package | Tray |
| Product Status | Active |
| Memory Type | Volatile |
| Memory Format | DRAM |
| Technology | SDRAM |
| Memory Size | 128Mbit |
| Memory Organization | 8M x 16 |
| Memory Interface | LVTTL |
| Clock Frequency | 166 MHz |
| Access Time | 5 ns |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 54-TSOP II |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Winbond Electronics W9812G6KH-6 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The W9812G6KH-6 is a Memory IC manufactured by Winbond Electronics (Winbond). Integrated Circuit DRAM 128mbit Lvttl in 54-Pin TSOP Package II, housed in a compact 54-TSOP II package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 54-TSOP (0.400", 10.16mm Width)
- Device Package: 54-TSOP II
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
