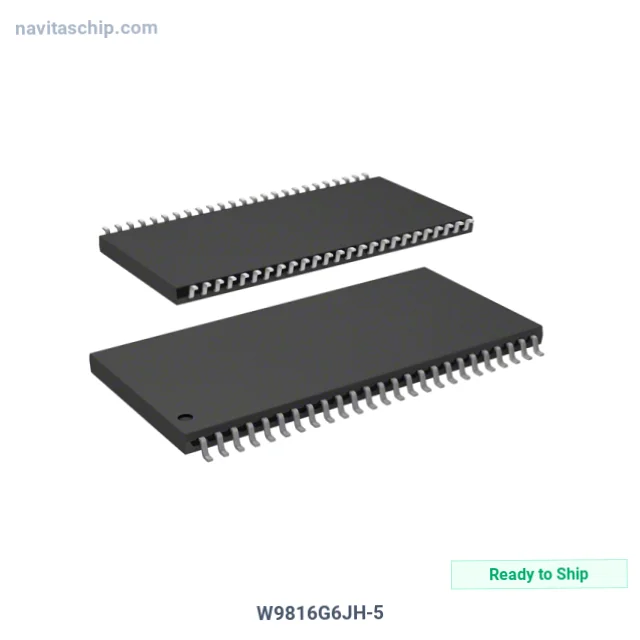

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | W9816G6JH-5 |
| Manufacturer | Winbond Electronics |
| NavitasChip Part Number | NAVI-5154786 |
| Description | IC DRAM 16MBIT PAR 50TSOP II |
| Spec | 50-TSOP (0.400", 10.16mm Width) |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Winbond Electronics |
| Package | Tray |
| Product Status | Not For New Designs |
| Memory Type | Volatile |
| Memory Format | DRAM |
| Technology | SDRAM |
| Memory Size | 16Mbit |
| Memory Organization | 1M x 16 |
| Memory Interface | Parallel |
| Clock Frequency | 200 MHz |
| Access Time | 4.5 ns |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 50-TSOP II |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Winbond Electronics W9816G6JH-5 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The W9816G6JH-5 is a Memory IC manufactured by Winbond Electronics (Winbond). Integrated Circuit DRAM 16mbit Parallel in 50-Pin TSOP Package II, housed in a compact 50-TSOP II package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 50-TSOP (0.400", 10.16mm Width)
- Device Package: 50-TSOP II
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
