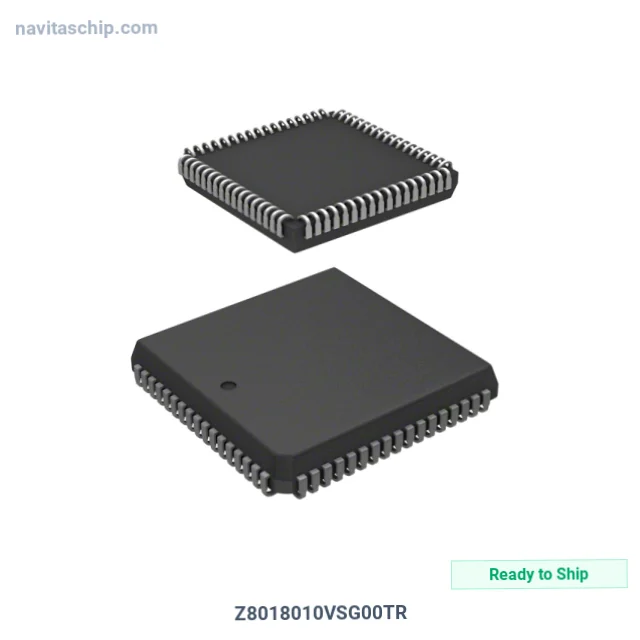

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | Z8018010VSG00TR |
| Manufacturer | Zilog |
| NavitasChip Part Number | NAVI-14621235 |
| Description | IC MPU Z80 10MHZ 68PLCC |
| Spec | 68-LCC (J-Lead) |
| Package | Tape & Reel (TR) |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Zilog |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Core Processor | Z80180 |
| Number of Cores/Bus Width | 1 Core, 8-Bit |
| Speed | 10MHz |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Voltage - I/O | 5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 68-PLCC (24.23x24.23) |
| Additional Interfaces | ASCI, CSIO, DMA, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The Z8018010VSG00TR is an Embedded Processor manufactured by Zilog. Integrated Circuit Microprocessor Z80 operating at 10MHz 68plcc, housed in a compact 68-PLCC (24.23x24.23) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 68-LCC (J-Lead)
- Device Package: 68-PLCC (24.23x24.23)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
