Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Zilog |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | Z80 |
| Number of Cores/Bus Width | 1 Core, 8-Bit |
| Speed | 20MHz |
| Graphics Acceleration | No |
| Voltage - I/O | 5.0V |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-LQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Zilog Z84C0020AEG Datasheet |

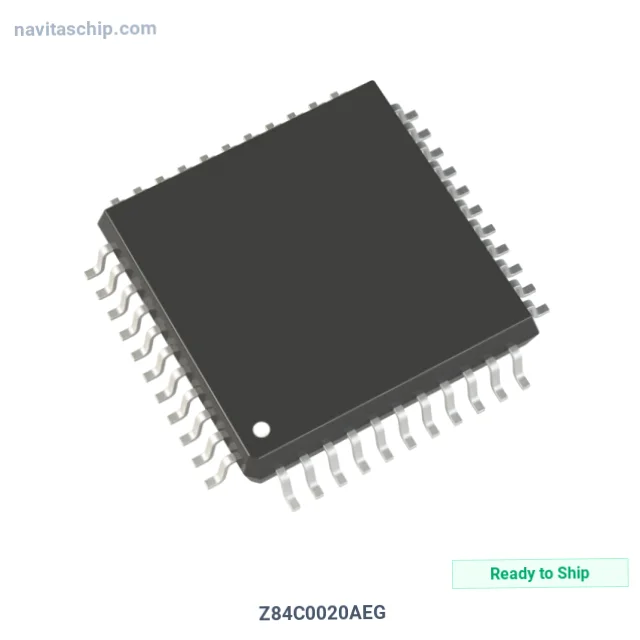

| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The Z84C0020AEG is an Embedded Processor manufactured by Zilog. Integrated Circuit Microprocessor Z80 operating at 20MHz in 44-Pin LQFP Package, housed in a compact 44-LQFP (10x10) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 100°C (TA)
- Mounting: Surface Mount
- Package: 44-LQFP
- Device Package: 44-LQFP (10x10)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
