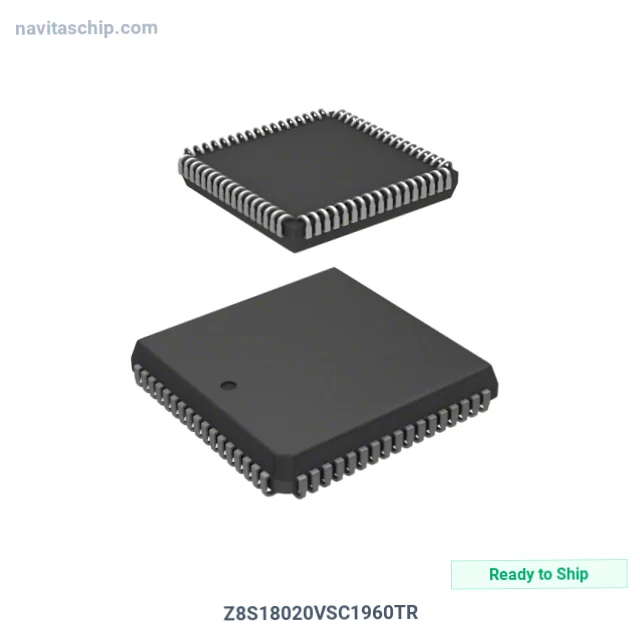

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Zilog |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Core Processor | Z8S180 |
| Number of Cores/Bus Width | 1 Core, 8-Bit |
| Speed | 20MHz |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Voltage - I/O | 5.0V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 68-PLCC |
| Additional Interfaces | ASCI, CSIO, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Zilog Z8S18020VSC1960TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The Z8S18020VSC1960TR is an Embedded Processor manufactured by Zilog. Integrated Circuit Microprocessor Z180 operating at 20MHz 68plcc, housed in a compact 68-PLCC package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 68-LCC (J-Lead)
- Device Package: 68-PLCC
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
