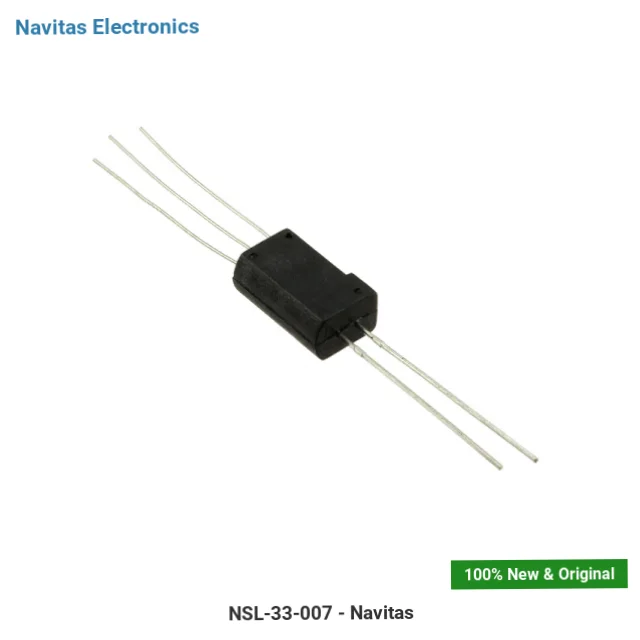

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | NSL-33-007 |
| Manufacturer | Advanced Photonix |
| NavitasChip Part Number | NAVI-5423676 |
| Description | OPTOISO 2KV PHOTOCEL OPTOCOUPLER |
| Spec | Axial - 5 Leads |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | Advanced Photonix |
| Package | Bulk |
| Product Status | Active |
| Type | Photocell Optocoupler |
| Number of Channels | 1 |
| Voltage - Isolation | 2000Vrms |
| Input Type | DC |
| Rise / Fall Time (Typ) | 1.2ms, 2.1ms |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Current - DC Forward (If) (Max) | 20 mA |
| Voltage - Supply | 100V (Max) |
| Operating Temperature | -40°C ~ 75°C |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Advanced Photonix NSL-33-007 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NSL-33-007 is an Isolator manufactured by Advanced Photonix. Optocoupler Isolator 2kV Photocel Optocoupler, housed in a compact Axial - 5 Leads package, with 100V (Max) supply voltage.
Key Technical Specifications
- Supply Voltage: 100V (Max)
- Channels: 1
- Operating Temperature: -40°C ~ 75°C
- Mounting: Through Hole
- Package: Axial - 5 Leads
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
