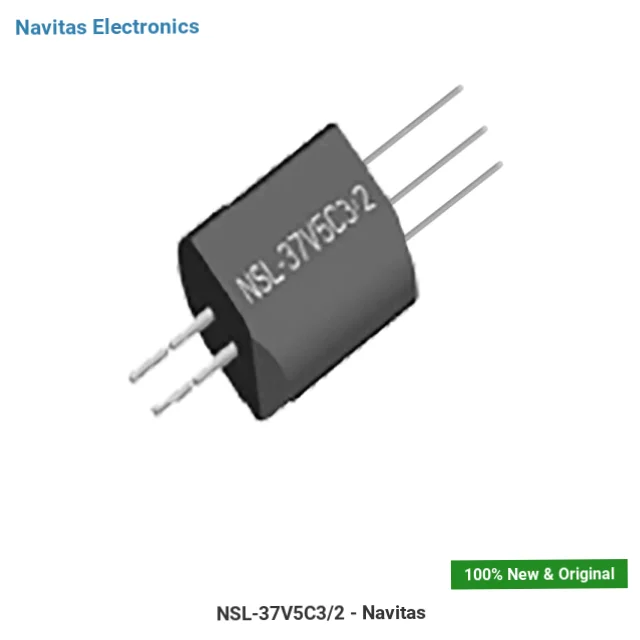

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | NSL-37V5C3/2 |
| Manufacturer | Advanced Photonix |
| NavitasChip Part Number | NAVI-19242818 |
| Description | OPTOISO 2.5KV PHOTOCELL OPTOCOUP |
| Spec | 5-SMD, Flat Leads |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | Advanced Photonix |
| Package | Bulk |
| Product Status | Active |
| Type | Photocell Optocoupler |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Input Type | DC |
| Rise / Fall Time (Typ) | 3ms, - |
| Voltage - Forward (Vf) (Typ) | 1.2 V |
| Current - DC Forward (If) (Max) | 40 mA |
| Operating Temperature | -40°C ~ 75°C |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Advanced Photonix NSL-37V5C3/2 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NSL-37V5C3/2 is an Isolator manufactured by Advanced Photonix. Optocoupler Isolator 2.5kV Photocell Optocoup, housed in a compact 5-SMD, Flat Leads package.
Key Technical Specifications
- Channels: 1
- Operating Temperature: -40°C ~ 75°C
- Mounting: Surface Mount
- Package: 5-SMD, Flat Leads
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
