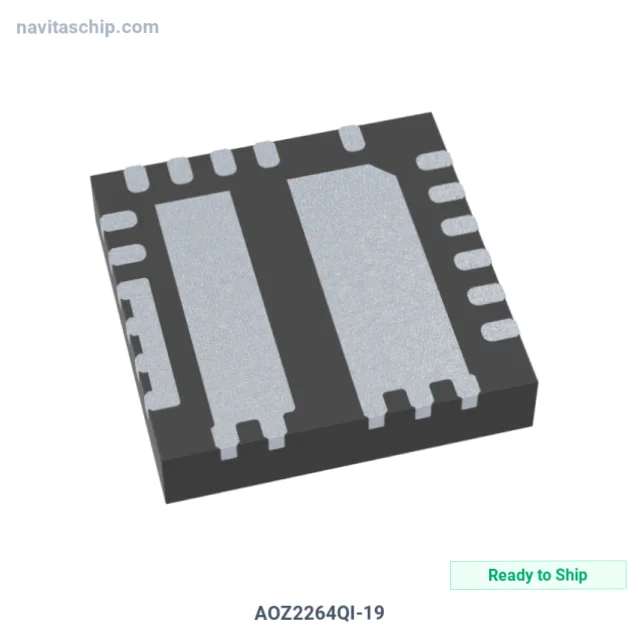

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AOZ2264QI-19 |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| NavitasChip Part Number | NAVI-10258109 |
| Description | IC REG BUCK ADJ 15A 23QFNB |
| Spec | 23-PowerTFQFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 20.4V |
| Current - Output | 15A |
| Frequency - Switching | 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 23-QFNB (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Alpha & Omega Semiconductor Inc. AOZ2264QI-19 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AOZ2264QI-19 is a DC-DC Switching Voltage Regulator manufactured by Alpha & Omega Semiconductor Inc. (AOS). Integrated Circuit Regulator Buck Adjustable 15a 23qfnb, housed in a compact 23-QFNB (4x4) package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 23-PowerTFQFN
- Device Package: 23-QFNB (4x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
