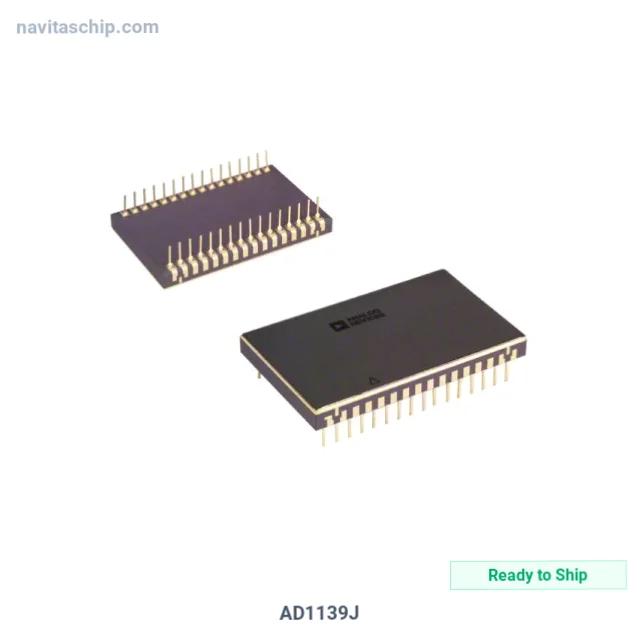

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD1139J |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-616867 |
| Description | IC DAC 18BIT A-OUT 32BBDIP-H |
| Spec | 32-CDIP (0.910", 23.12mm) |
| Package | Box |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Box |
| Product Status | Obsolete |
| Number of Bits | 18 |
| Number of D/A Converters | 1 |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V, ±15V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 32-BBDIP-H |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD1139J Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD1139J is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 18bit A-Out 32bbdip-H, housed in a compact 32-BBDIP-H package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 32-CDIP (0.910", 23.12mm)
- Device Package: 32-BBDIP-H
- RoHS Compliant
Packaging: factory Box or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
