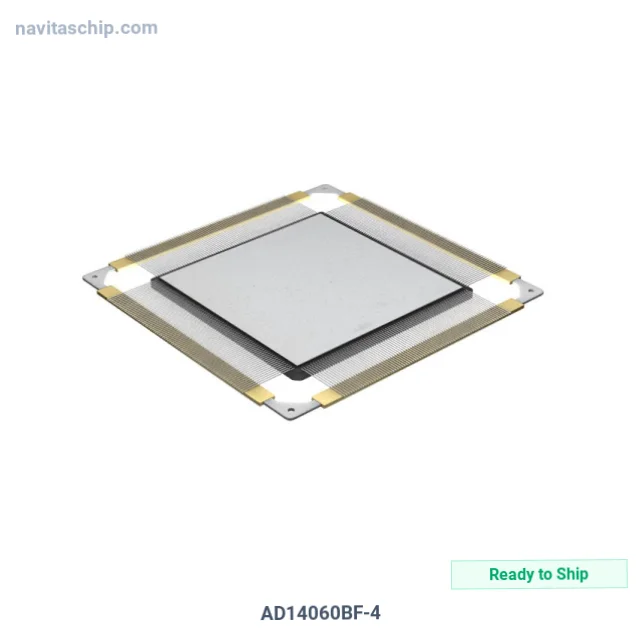

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD14060BF-4 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-11521728 |
| Description | IC DSP CMOS 32BIT 308CQFP |
| Spec | 308-CBQFP |
| Package | Bag |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Bag |
| Product Status | Obsolete |
| Type | Fixed/Floating Point |
| Interface | Host Interface, Link Port, Serial Port |
| Clock Rate | 40MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 2MB |
| Voltage - I/O | 5.00V |
| Voltage - Core | 5.00V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 308-CQFP (52x52) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD14060BF-4 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD14060BF-4 is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital Signal Processor CMOS 32bit 308cqfp, housed in a compact 308-CQFP (52x52) package.
Key Technical Specifications
- Interface: Host Interface, Link Port, Serial Port
- Operating Temperature: -40°C ~ 100°C
- Mounting: Surface Mount
- Package: 308-CBQFP
- Device Package: 308-CQFP (52x52)
Packaging: factory Bag or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
