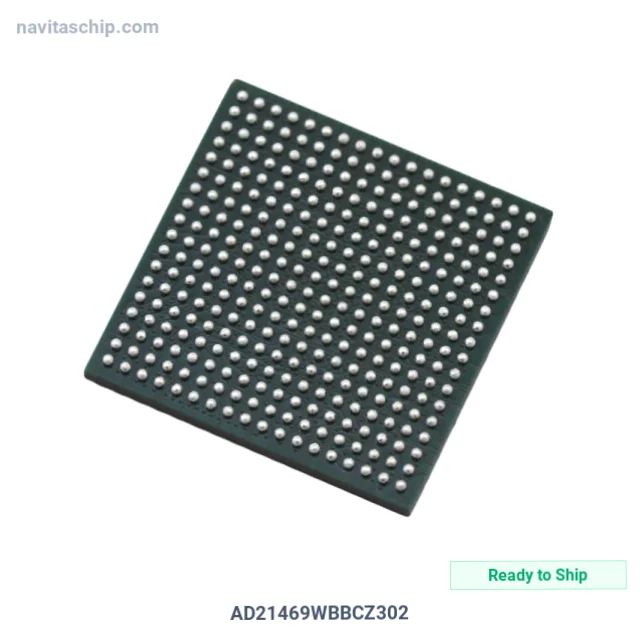

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD21469WBBCZ302 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-5175820 |
| Description | SHARC PROCESSOR/5 MBITS ON CHIP |
| Spec | 324-BGA, CSPBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Discontinued at |
| Type | Floating Point |
| Interface | DAI, DPI, EBI/EMI, I2C, SCI, SPI, SSP, UART/USART |
| Clock Rate | 400MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 5Mbit |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.05V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Supplier Device Package | 324-CSPBGA (19x19) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD21469WBBCZ302 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD21469WBBCZ302 is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Sharc Processor/5 Mbits On Chip, housed in a compact 324-CSPBGA (19x19) package.
Key Technical Specifications
- Interface: DAI, DPI, EBI/EMI, I2C, SCI, SPI, SSP, UART/USART
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 324-BGA, CSPBGA
- Device Package: 324-CSPBGA (19x19)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
