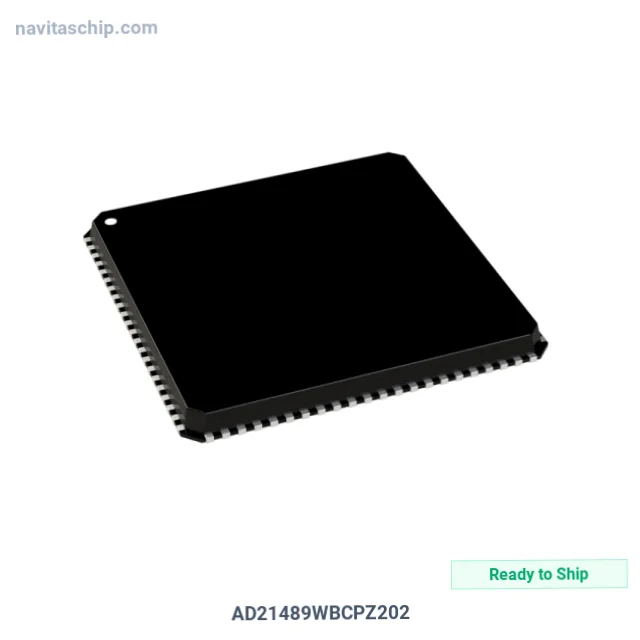

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD21489WBCPZ202 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12697923 |
| Description | ADSP-21489 W/ 5 MBIT RAM, 300MHZ |
| Spec | 88-VFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Discontinued at |
| Type | Floating Point |
| Interface | EBI/EMI, DAI, I2C, SPI, SPORT, UART/USART |
| Clock Rate | 300MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 5Mbit |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.1V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Supplier Device Package | 88-LFCSP-VQ (12x12) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD21489WBCPZ202 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD21489WBCPZ202 is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Adsp-21489W/ 5 Mbit Ram, housed in a compact 88-LFCSP-VQ (12x12) package.
Key Technical Specifications
- Interface: EBI/EMI, DAI, I2C, SPI, SPORT, UART/USART
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 88-VFQFN Exposed Pad, CSP
- Device Package: 88-LFCSP-VQ (12x12)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
