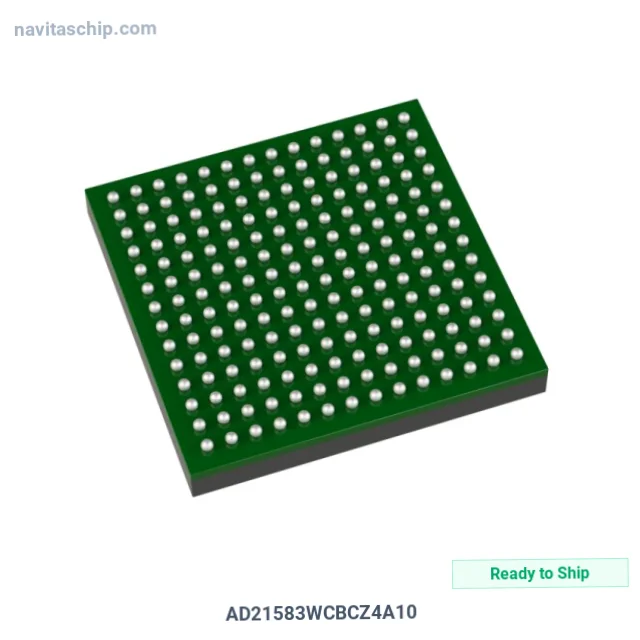

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD21583WCBCZ4A10 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-7324259 |
| Description | 2X3MB SHARC NO ARM SINGLE DDR LP |
| Spec | 349-LFBGA, CSPBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Discontinued at |
| Type | Floating Point |
| Interface | CAN, EBI/EMI, Ethernet, DAI, I2C, MMC/SD/SDIO, SPI, SPORT, UART/USART, USB OTG |
| Clock Rate | 450MHz |
| Non-Volatile Memory | ROM (512kB) |
| On-Chip RAM | 384kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.10V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Supplier Device Package | 349-CSPBGA (19x19) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD21583WCBCZ4A10 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD21583WCBCZ4A10 is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). 2x3mb Sharc No Arm Single DDR Low Power, housed in a compact 349-CSPBGA (19x19) package.
Key Technical Specifications
- Interface: CAN, EBI/EMI, Ethernet, DAI, I2C, MMC/SD/SDIO, SPI, SPORT, UART/USART, USB OTG
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 349-LFBGA, CSPBGA
- Device Package: 349-CSPBGA (19x19)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
