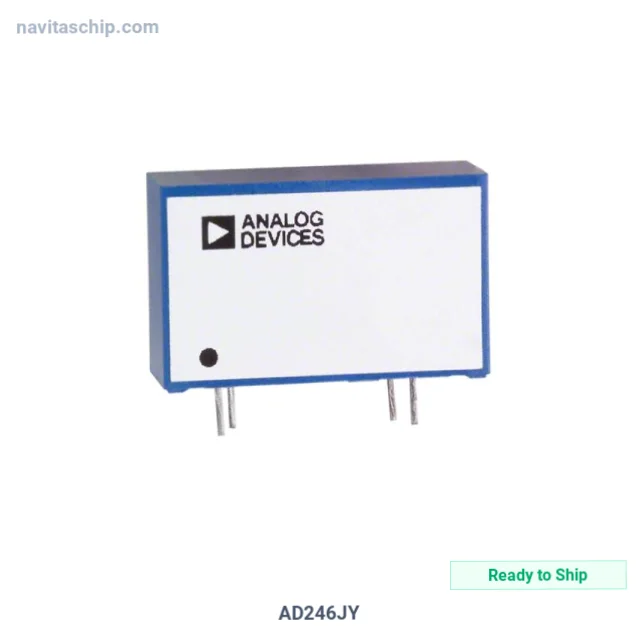

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD246JY |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-617055 |
| Description | IC CLK BUFFER 1:1 25KHZ 4SIP |
| Spec | 13-SIP, 4 Leads, Offset Leads |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Type | Buffer/Driver |
| Number of Circuits | 1 |
| Ratio - Input | 1:1 |
| Differential - Input | No/No |
| Input | Clock |
| Output | Clock |
| Frequency - Max | 25 kHz |
| Voltage - Supply | 14.25V ~ 15.75V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 4-SIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD246JY Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD246JY is a Clock Buffer and Driver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Clock Buffer 1:1 25kHz 4sip, housed in a compact 4-SIP package, with 14.25V ~ 15.75V supply voltage.
Key Technical Specifications
- Supply Voltage: 14.25V ~ 15.75V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: 13-SIP, 4 Leads, Offset Leads
- Device Package: 4-SIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
