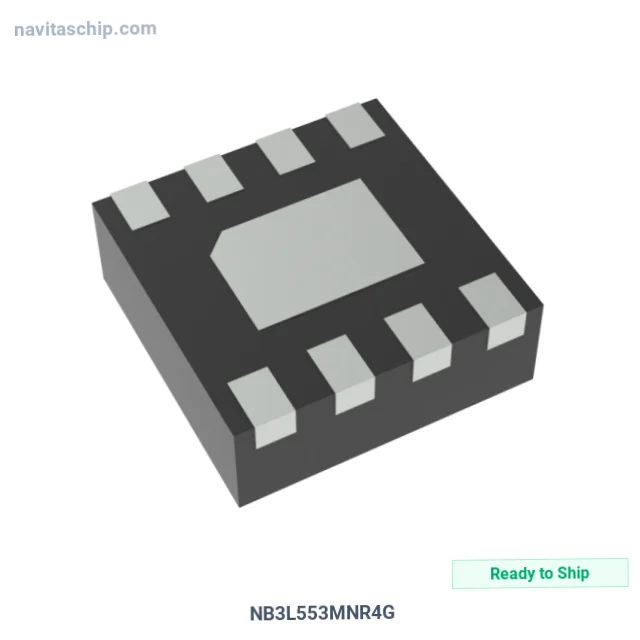

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | onsemi |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:4 |
| Differential - Input | No/No |
| Input | LVCMOS, LVTTL |
| Output | LVCMOS, LVTTL |
| Frequency - Max | 200 MHz |
| Voltage - Supply | 2.375V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (2x2) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NB3L553MNR4G Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NB3L553MNR4G is a Clock Buffer and Driver IC manufactured by onsemi. Integrated Circuit Clock Buffer 1:4 operating at 200MHz in 8-Pin DFN Package, housed in a compact 8-DFN (2x2) package, with 2.375V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 5.25V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-VFDFN Exposed Pad
- Device Package: 8-DFN (2x2)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
