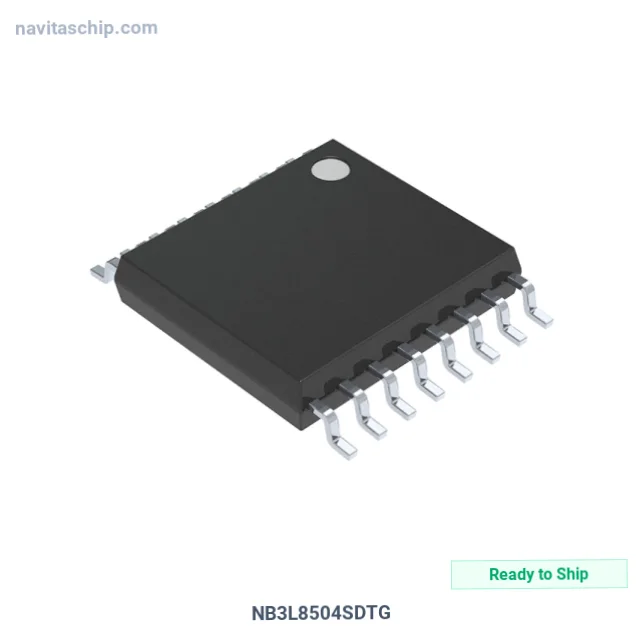

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | onsemi |
| Package | Tube |
| Product Status | Active |
| Type | Fanout Buffer (Distribution), Translator |
| Number of Circuits | 1 |
| Ratio - Input | 1:4 |
| Differential - Input | Yes/Yes |
| Input | HCSL, HSTL, LVDS, LVPECL, SSTL |
| Output | LVDS |
| Frequency - Max | 700 MHz |
| Voltage - Supply | 2.375V ~ 3.63V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NB3L8504SDTG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NB3L8504SDTG is a Clock Buffer and Driver IC manufactured by onsemi. Integrated Circuit Clock Buffer 1:4 operating at 700MHz in 16-Pin TSSOP Package, housed in a compact 16-TSSOP package, with 2.375V ~ 3.63V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 3.63V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-TSSOP (0.173", 4.40mm Width)
- Device Package: 16-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
