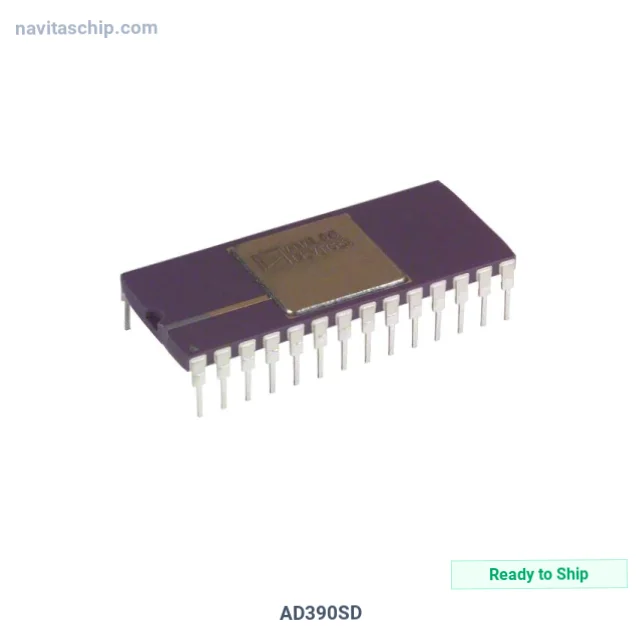

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD390SD |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-617124 |
| Description | IC DAC 12BIT V-OUT 28CDIP |
| Spec | 28-CDIP (0.600", 15.24mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 4 |
| Settling Time | 8µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±13.5V ~ 16.5V |
| INL/DNL (LSB) | ±0.25, ±0.5 |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 28-CDIP |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD390SD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD390SD is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 12bit V-Out 28cdip, housed in a compact 28-CDIP package.
In today's market, DAC EOL and obsolescence disrupting precision instrumentation production can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 28-CDIP (0.600", 15.24mm)
- Device Package: 28-CDIP
Applications
Commonly utilized in:
- 12-bit and 16-bit precision DAC with integrated reference and calibration
- 8-bit and 10-bit cost-optimized DAC for general-purpose conversion
- 18-bit and 20-bit ultra-high resolution DAC for metrology and test equipment
- monotonic guaranteed output for stable feedback control loops
- test and measurement instrumentation and bench equipment
Why Choose NavitasChip for AD390SD?
NavitasChip offers cost-saving procurement for the AD390SD and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Multiple origin options for AD390SD to optimize delivery time and customs clearance.
AD390SD - Request a quote today.
