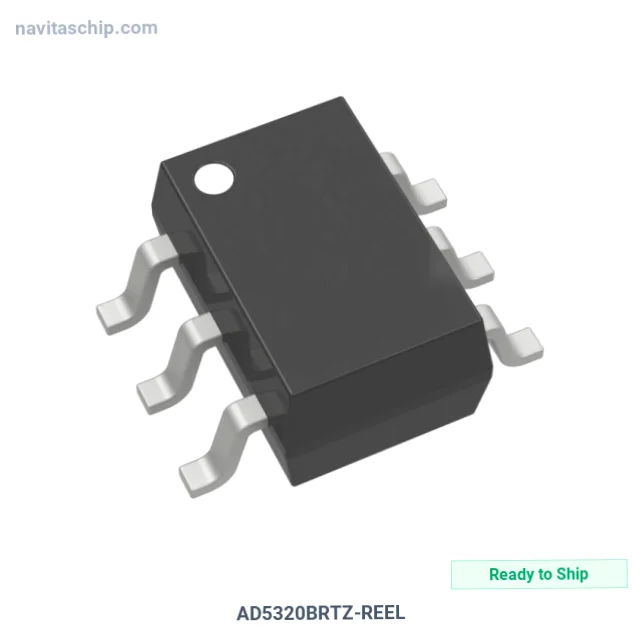

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD5320BRTZ-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-760248 |
| Description | IC DAC 12BIT V-OUT SOT23-6 |
| Spec | SOT-23-6 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 10µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±16 (Max), ±1 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | SOT-23-6 |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD5320BRTZ-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD5320BRTZ-REEL is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 12bit V-Out in 6-Pin SOT23 Package, housed in a compact SOT-23-6 package. Tape and Reel packaging available.
Don't let discontinued multi-channel DAC series requiring drop-in pin-compatible replacements slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: SOT-23-6
Applications
Engineered specifically for:
- embedded systems
- consumer electronics
- 12-bit and 16-bit precision DAC with integrated reference and calibration
- low glitch energy and fast settling time for closed-loop control
Why Choose NavitasChip for AD5320BRTZ-REEL?
NavitasChip offers Allocated parts in stock when authorized channels face shortage for the AD5320BRTZ-REEL and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Need AD5320BRTZ-REEL urgently? We maintain buffer stock across multiple global locations.
AD5320BRTZ-REEL - Contact our sales team.
