| Manufacturer Product Number | AD5547SRU-EP |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-6072267 |
| Description | IC DAC 16BIT A-OUT 38TSSOP |
| Spec | 38-TFSOP (0.173", 4.40mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Number of Bits | 16 |
| Number of D/A Converters | 2 |
| Settling Time | 500ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Architecture | Multiplying DAC |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 38-TSSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD5547SRU-EP Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

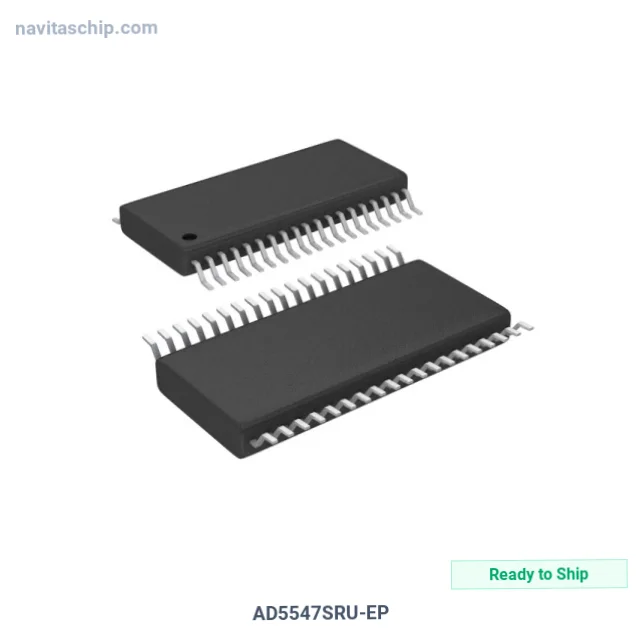

The AD5547SRU-EP is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 16bit A-Out in 38-Pin TSSOP Package, housed in a compact 38-TSSOP package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -55°C ~ 125°C
- Mounting: Surface Mount
- Package: 38-TFSOP (0.173", 4.40mm Width)
- Device Package: 38-TSSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
