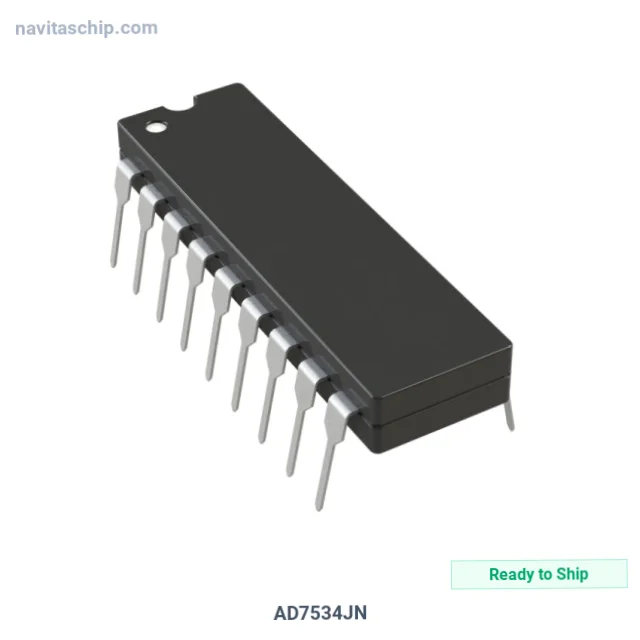

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7534JN/+ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12105612 |
| Description | IC DAC 14BIT A-OUT 20DIP |
| Spec | 20-DIP (0.300", 7.62mm) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 14 |
| Number of D/A Converters | 1 |
| Settling Time | 1.5µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 11.4V ~ 15.75V |
| Voltage - Supply, Digital | 11.4V ~ 15.75V |
| INL/DNL (LSB) | ±1, ±1 (Max) |
| Architecture | Multiplying DAC, R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 20-DIP |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7534JN/+ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7534JN/+ is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 14bit A-Out in 20-Pin DIP Package, housed in a compact 20-DIP package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 20-DIP (0.300", 7.62mm)
- Device Package: 20-DIP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
