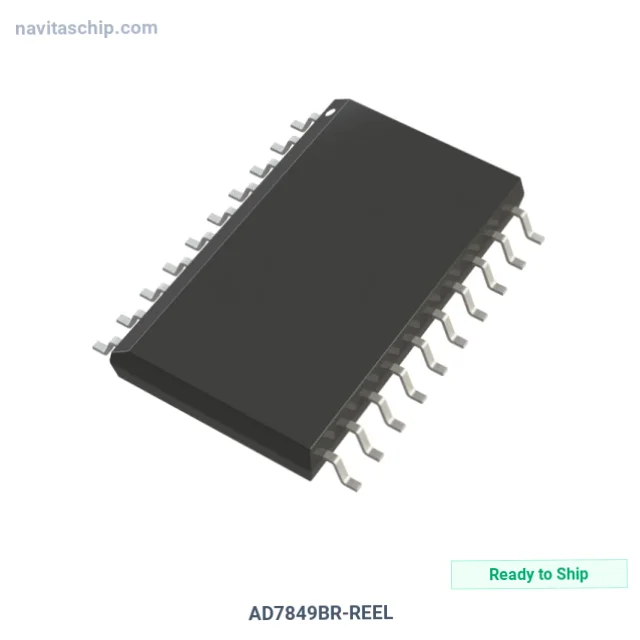

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7849BR-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-619873 |
| Description | IC DAC 16BIT V-OUT 20SOIC |
| Spec | 20-SOIC (0.295", 7.50mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 10µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±16 (Max), ±0.9 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 20-SOIC |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7849BR-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7849BR-REEL is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 16bit V-Out in 20-Pin SOIC Package, housed in a compact 20-SOIC package. Tape and Reel packaging available.
In today's market, supply gaps during industrial automation and test equipment lifecycle ramps can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-SOIC (0.295", 7.50mm Width)
- Device Package: 20-SOIC
Applications
Engineered specifically for:
- R-2R ladder and segmented DAC architectures for monotonic output
- 12-bit and 16-bit precision DAC with integrated reference and calibration
- low glitch energy and fast settling time for closed-loop control
- industrial process control and automation analog output stages
Why Choose NavitasChip for AD7849BR-REEL?
NavitasChip offers wholesale pricing advantages for the AD7849BR-REEL and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
