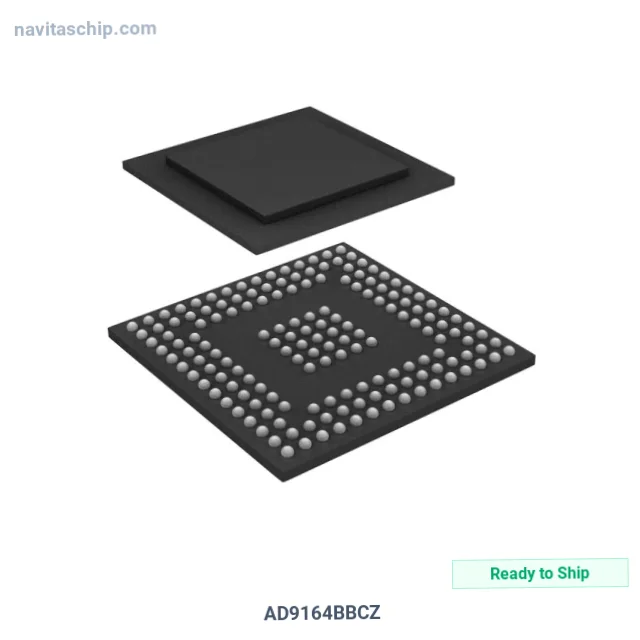

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD9164BBCZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-6163952 |
| Description | IC DAC 16BIT A-OUT 165CSPBGA |
| Spec | 165-VFBGA, CSPBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | JESD204B |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.14V ~ 1.326V, 2.375V ~ 2.625V |
| Voltage - Supply, Digital | 1.14V ~ 1.326V |
| INL/DNL (LSB) | ±2.7, ±1.7 |
| Architecture | Quad-Switch |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 165-CSPBGA (8x8) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD9164BBCZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD9164BBCZ is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 16bit A-Out in 165-Pin BGA Package, housed in a compact 165-CSPBGA (8x8) package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 165-VFBGA, CSPBGA
- Device Package: 165-CSPBGA (8x8)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
