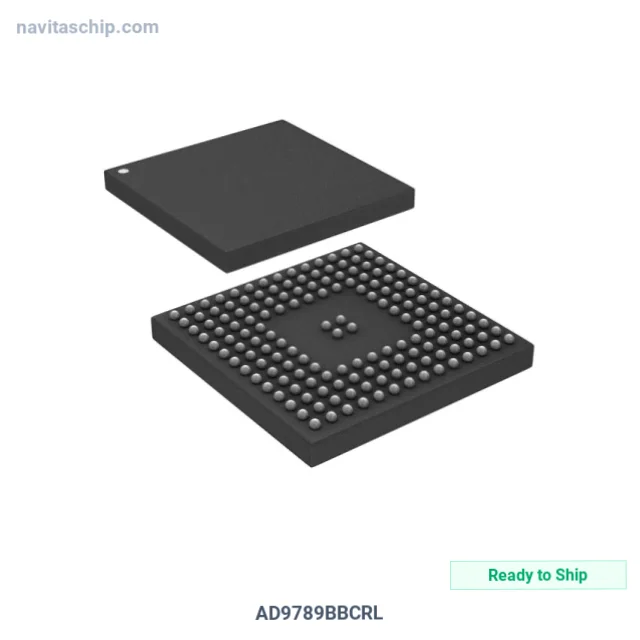

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD9789BBCRL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2042641 |
| Description | IC DAC 14BIT A-OUT 164CSPBGA |
| Spec | 164-LFBGA, CSPBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 14 |
| Number of D/A Converters | 1 |
| Settling Time | 13ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.14V ~ 3.47V |
| Voltage - Supply, Digital | 1.43V ~ 1.58V, 1.71V ~ 1.89V, 3.14V ~ 3.47V |
| Architecture | Oversampling Interpolating DAC |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 164-CSPBGA (12x12) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD9789BBCRL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD9789BBCRL is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 14bit A-Out in 164-Pin BGA Package, housed in a compact 164-CSPBGA (12x12) package.
Struggling with quarterly cost-down targets? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 164-LFBGA, CSPBGA
- Device Package: 164-CSPBGA (12x12)
- RoHS Compliant
Applications
Ideal solution for:
- embedded systems
- parallel interface DAC for high-speed waveform generation
- 18-bit and 20-bit ultra-high resolution DAC for metrology and test equipment
Why Choose NavitasChip for AD9789BBCRL?
NavitasChip offers cost-effective alternative to authorized distributors for the AD9789BBCRL and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Multiple origin options for AD9789BBCRL to optimize delivery time and customs clearance.
AD9789BBCRL - Request a quote today.
