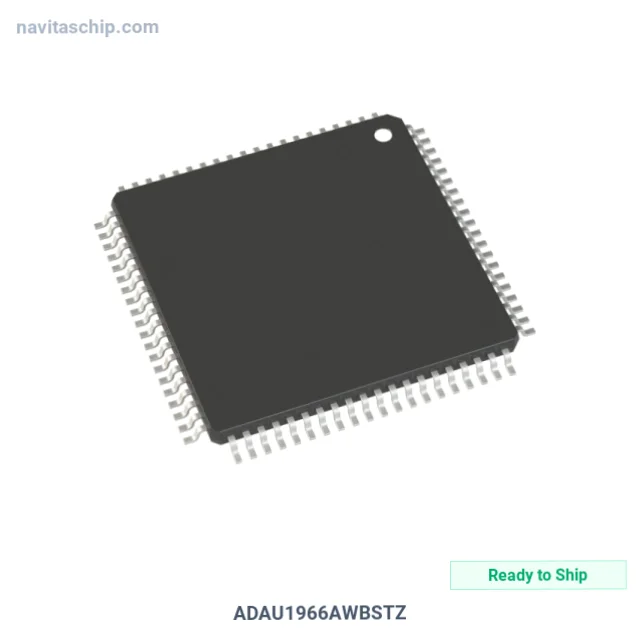

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADAU1966AWBSTZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-4915075 |
| Description | IC DAC 24BIT V-OUT 80LQFP |
| Spec | 80-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 24 |
| Number of D/A Converters | 16 |
| Output Type | Voltage - Unbuffered |
| Differential Output | Yes |
| Data Interface | I2C, I2S, SPI |
| Reference Type | Internal |
| Voltage - Supply, Analog | 3.14V ~ 3.46V |
| Voltage - Supply, Digital | 2.25V ~ 3.46V |
| Architecture | Sigma-Delta |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 80-LQFP (14x14) |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADAU1966AWBSTZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADAU1966AWBSTZ is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 24bit V-Out in 80-Pin LQFP Package, housed in a compact 80-LQFP (14x14) package.
Key Technical Specifications
- Output Type: Voltage - Unbuffered
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 80-LQFP
- Device Package: 80-LQFP (14x14)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
