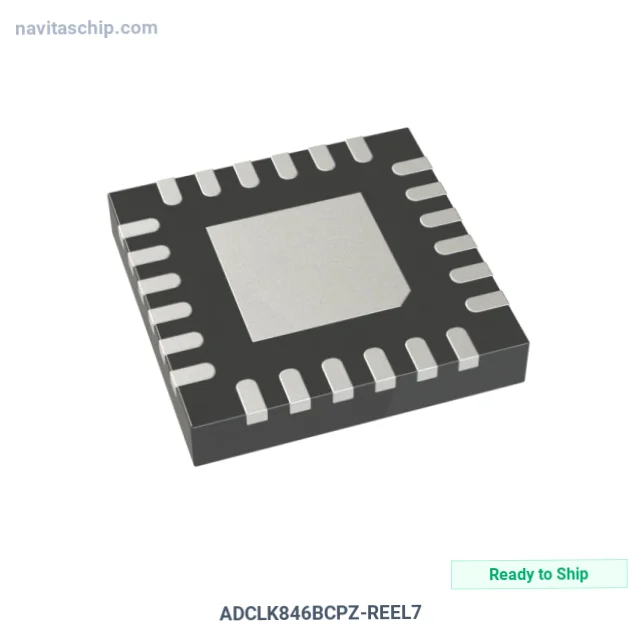

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADCLK846BCPZ-REEL7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2261185 |
| Description | IC CLK BUFFER 1:6 1.2GHZ 24LFCSP |
| Spec | 24-WFQFN Exposed Pad, CSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:6 |
| Differential - Input | Yes/Yes |
| Input | CML, CMOS, HSTL, LVDS, LVPECL |
| Output | CMOS, LVDS |
| Frequency - Max | 1.2 GHz |
| Voltage - Supply | 1.71V ~ 1.89V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-LFCSP (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADCLK846BCPZ-REEL7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADCLK846BCPZ-REEL7 is a Clock Buffer and Driver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Clock Buffer 1:6 operating at 1.2GHz in 24-Pin Csp Package, housed in a compact 24-LFCSP (4x4) package, with 1.71V ~ 1.89V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.71V ~ 1.89V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-WFQFN Exposed Pad, CSP
- Device Package: 24-LFCSP (4x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
