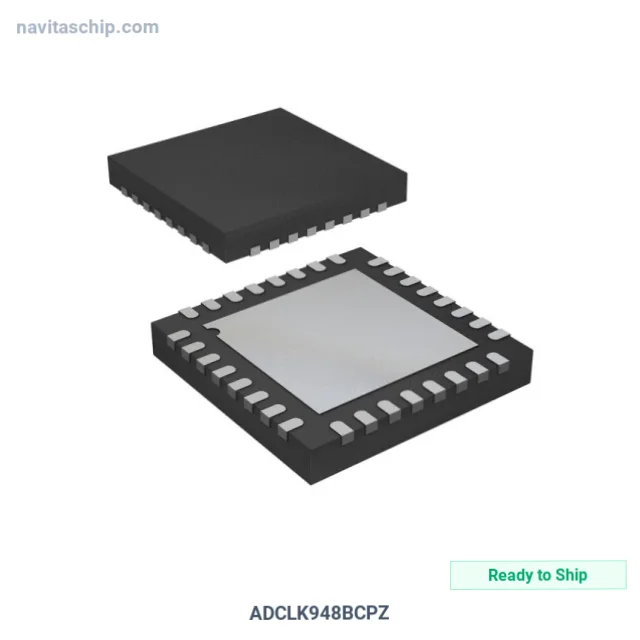

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADCLK948BCPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2214260 |
| Description | IC CLK BUFFER 2:8 4.8GHZ 32LFCSP |
| Spec | 32-WFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input | 2:8 |
| Differential - Input | Yes/Yes |
| Input | CML, CMOS, LVDS, LVPECL |
| Output | LVPECL |
| Frequency - Max | 4.8 GHz |
| Voltage - Supply | 2.97V ~ 3.63V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-LFCSP (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADCLK948BCPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADCLK948BCPZ is a Clock Buffer and Driver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Clock Buffer 2:8 operating at 4.8GHz in 32-Pin Csp Package, housed in a compact 32-LFCSP (5x5) package, with 2.97V ~ 3.63V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.97V ~ 3.63V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 32-WFQFN Exposed Pad, CSP
- Device Package: 32-LFCSP (5x5)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
